SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts

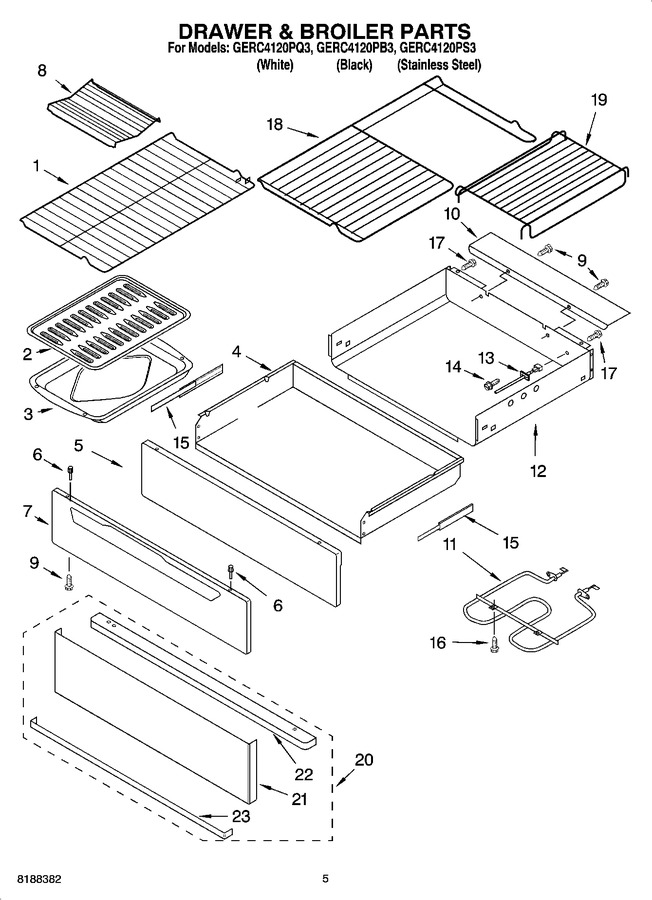

04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 46.84
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 98.65
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 330.36
4	8272610		Drawer, Warming				$ 141.41
5	8272609		Panel, Inner				$ 36.52
6	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 11.20
6	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 11.07
7	W11230488		Panel, Drawer Front (black)   (Replaces: 8053341)				$ 212.44
7	W11219377		Panel, Drawer Front (white)   (Replaces: 8053339)				$ 212.57
8	3181534		Rack, Roasting		Appelez-nous	-
9	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
10	8272977		Heat Shield, Element		Appelez-nous	-
11	9758520		Element, Warming		Appelez-nous	-
12	8274153		Enclosure, Drawer		Appelez-nous	-
13	WP8274149		Sensor   (Replaces: 8274149)			Immediately	$ 192.05
14	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 7.55
15	9761929		Glide, Accuride (left Hand)				$ 60.25
15	9761930		Glide, Accuride (right Hand)				$ 44.45
16	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 8.44
17	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
18	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 159.11
19	4396927		Rack, Insert   (Replaces: 8274022)				$ 246.10
21	8053951		Panel, Stainless		Appelez-nous	-
22	9757237		Handle		Appelez-nous	-
23	8053950		Bottom, Drawer				$ 82.35

    View Diagram in Separate Window       Print Part List
