View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

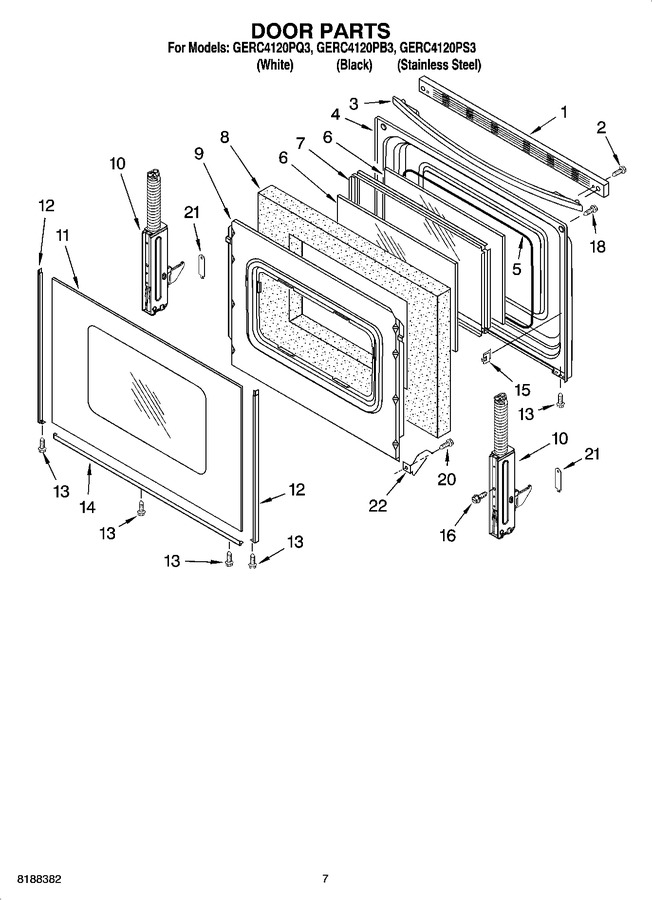

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016380 | Trim, Top (black) |
|
$ 80.76 | |||||
| 1 | W10016420 | Trim, Top (stainless Model) |
|
- | |||||
| 1 | W10016370 | Trim, Top (white) |
|
$ 79.85 | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 11.03 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 8522444) |
|
$ 370.67 | |||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: 3195922) |
|
$ 270.65 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 233.31 | |||||
| 10 | W10347466 | Hinge, Door (2) (white, Black And Biscuit Models) (Replaces: 9761493) |
|
Immediately | $ 219.84 | ||||
| 10 | W10347464 | Hinge, Door (2) (stainless Model) (Replaces: 9761496) |
|
Immediately | $ 133.98 | ||||
| 11 | WPW10118455 | Glass, Outer (stainless Steel) (Replaces: 9756417) |
|
Immediately | $ 332.70 | ||||
| 11 | WPW10118455 | Glass, Outer (black) (Replaces: 9756414) |
|
Immediately | $ 332.70 | ||||
| 11 | WPW10118454 | Glass, Outer (white) (Replaces: 9756415) |
|
$ 324.91 | |||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | WP8523172 | Trim, Side (white Right Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12 | WP8523166 | Trim, Side (white Left Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 14 | WP8523180 | Trim, Lower (stainless Model) (Replaces: 8523180) |
|
$ 169.00 | |||||
| 15 | 3196025 | Clip, Glass (4) |
|
$ 20.10 | |||||
| 16 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 18 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 20 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 21 | 9761517 | Clip, Door Mntg |
|
$ 48.11 | |||||
| 22 | 3196794 | Bracket, Window (2) |
|
$ 24.34 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 59.89 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 3184478 | Cleaner, Glass |
|
- | ||||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 28.54 | |||||
| 9761453 | Harness, Wire (cooktop Left) |
|
$ 105.24 | ||||||
| 9761455 | Harness, Wire (cooktop Right) |
|
- | ||||||
| 9759599 | Harness, Wire (console) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8273908 | Harness, Wire (warming Element) |
|
- | ||||||
| 9757939 | Harness, Wire (main) |
|
- | ||||||
| 9758192 | Harness, Wire, Door Switch/sensor |
|
- | ||||||
| 9756350 | Power, Cord |
|
$ 60.82 | ||||||
| 9756779 | Strain Relief |
|
- | ||||||
| W11209404 | 19 Pin Cable (Replaces: 9762426) |
|
$ 119.00 | ||||||
| 9756550 | Harness, Bake Element (hidden) |
|
$ 81.87 | ||||||
| 3196696 | Clip, Harness |
|
- | ||||||
| 3184020 | Wire, Ground (Replaces: 8523279) |
|
$ 86.92 | ||||||
| WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 87.22 | |||||
| W11244557 | Screw, Ground (Replaces: 3196173) |
|
$ 14.29 | ||||||
| 814381 | Pin Kit-dr Removal (Replaces: 3196897) |
|
$ 11.28 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 261582 | Grease |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 |
