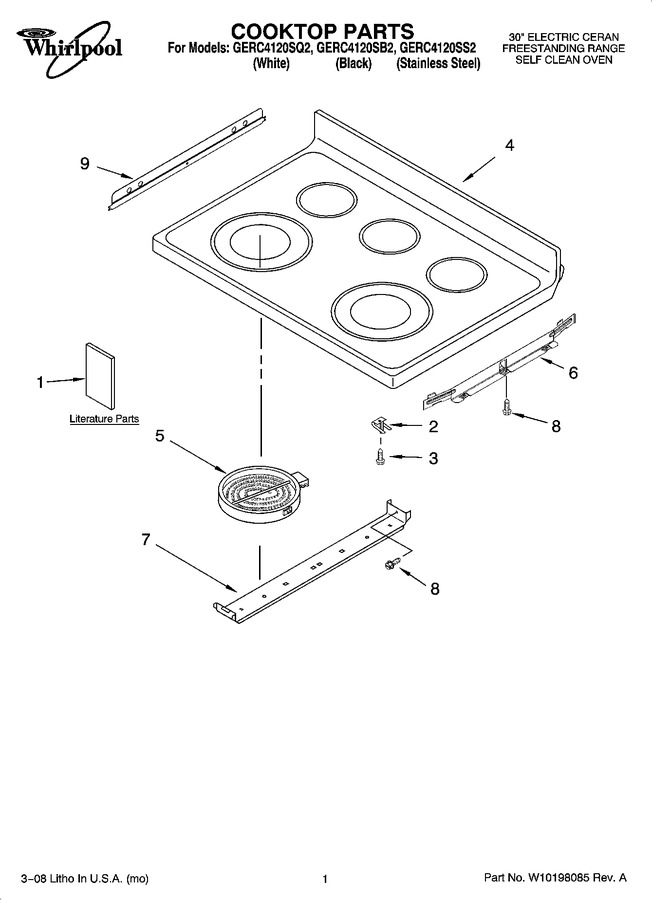

01 - Cooktop Parts
02 - Drawer & Broiler Parts
03 - Chassis Parts
04 - Control Panel Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10162205 | Owners Manual |
|
- | |||||
| 1 | 9762995 | Tech Sheet (english) |
|
- | |||||
| 1 | W10041720 | Tech Sheet (french) |
|
- | |||||
| 1 | W10141167 | Installation Instructions |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9762761 | Safer Cking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cking Tips (french) |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | W10134943 | Cooktop (white) |
|
- | |||||
| 4 | W10134942 | Cooktop (black) |
|
- | |||||
| 5 | W10823692 | Element, Surface (2400/1200 W Lf, Rf) (Replaces: 9759351) |
|
Immediately | $ 227.59 | ||||
| 5 | W10823711 | Element, Surface (1200 W - Lr,rr) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 5 | WP9762851 | Element, Surface (120 V - Cr) (Replaces: 9762851) |
|
Immediately | $ 290.36 | ||||
| 6 | 8524132 | Shield, Wiring |
|
- | |||||
| 7 | 8272791 | Bracket, Element ((2)) |
|
- | |||||
| 7 | 8273720 | Bracket, Element ((1)) |
|
- | |||||
| 8 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 9 | 9758893 | Heat Shield |
|
- |
