SELECT A DIAGRAM

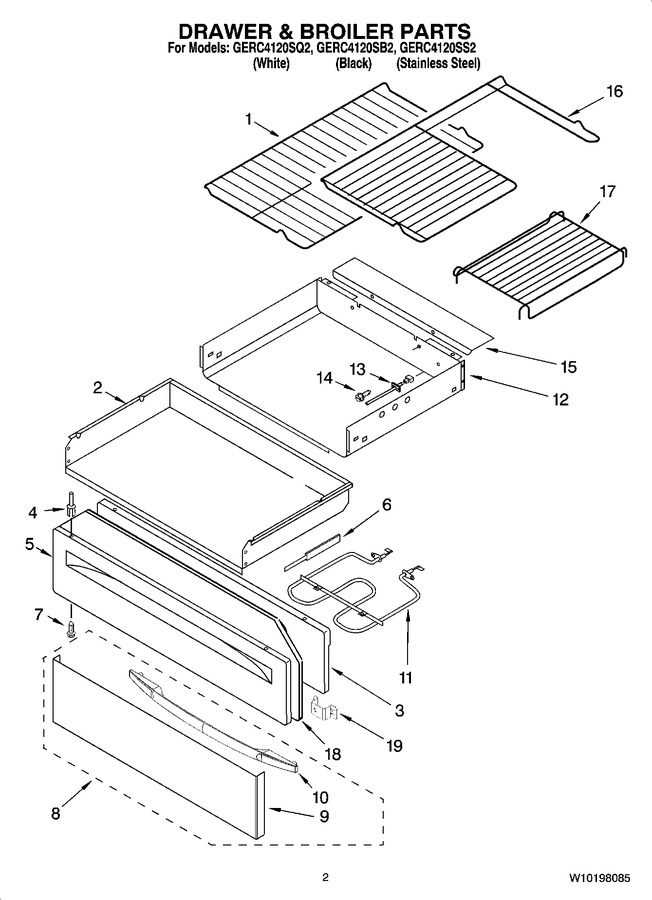

01 - Cooktop Parts


02 - Drawer & Broiler Parts


03 - Chassis Parts


04 - Control Panel Parts


05 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: W10138079)			Immediately	$ 46.84
2	8272610		Drawer, Storage				$ 141.41
3	8272609		Panel, Inner				$ 36.52
4	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 11.20
4	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 11.07
5	W10010950		Panel, Drawer Front (black)		Appelez-nous	-
5	W10010930		Panel, Drawer Front (white)		Appelez-nous	-
6	9761930		Rail, Drawer (right Hand)				$ 44.45
6	9761929		Rail, Drawer (left Hand)				$ 60.25
7	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
9	W10135961		Panel, Stainless		Appelez-nous	-
10	9761981		Handle, Drawer		Appelez-nous	-
11	9758520		Element, Warming		Appelez-nous	-
12	8274153		Enclosure, Drwr		Appelez-nous	-
13	WP8274149		Sensor   (Replaces: 8274149)			Immediately	$ 192.05
14	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 7.55
15	8272977		Heat Shield, Drawer		Appelez-nous	-
16	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 159.11
17	4396927		Rack, Insert   (Replaces: 8274022)				$ 246.10
18	W10061390		Insulation		Appelez-nous	-
19	W10010830		Bracket, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
