SELECT A DIAGRAM
New Model Search:

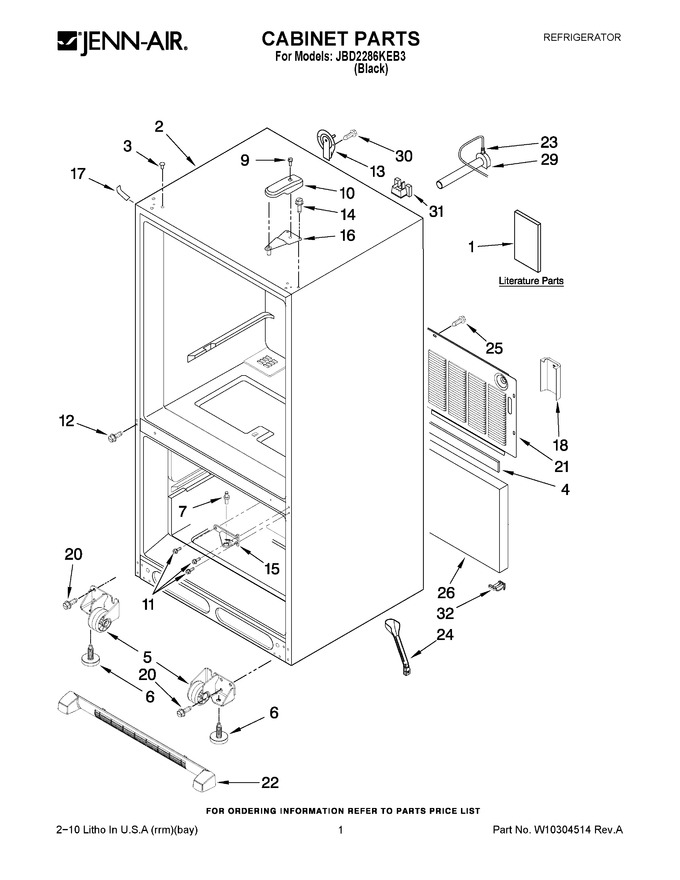

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10279330 | Tech Sheet |
|
- | |||||
| 1 | W10137647 | Use & Care Guide |
|
- | |||||
| 1 | W10183269 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11820444 | Roller Assy. (2) (left) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820445 | Roller Assy. (2) (right) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 6 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.72 | |||||
| 12 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | W10208593 | Guard, Water Valve |
|
$ 15.71 | |||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | W10210980 | Cover, Unit |
|
$ 203.54 | |||||
| 22 | WPW10534162 | Grille, Toe (black) (Replaces: W10236196) |
|
$ 148.16 | |||||
| 23 | WPM0114003 | Clip, Speed (Replaces: M0114003SP) |
|
$ 11.60 | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 29 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 119.86 | ||||
| 30 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 31 | 12777701 | Block, Filter (2) |
|
$ 7.17 | |||||
| 32 | 12831101 | Sweep, Dual Tube |
|
$ 13.03 |
