01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

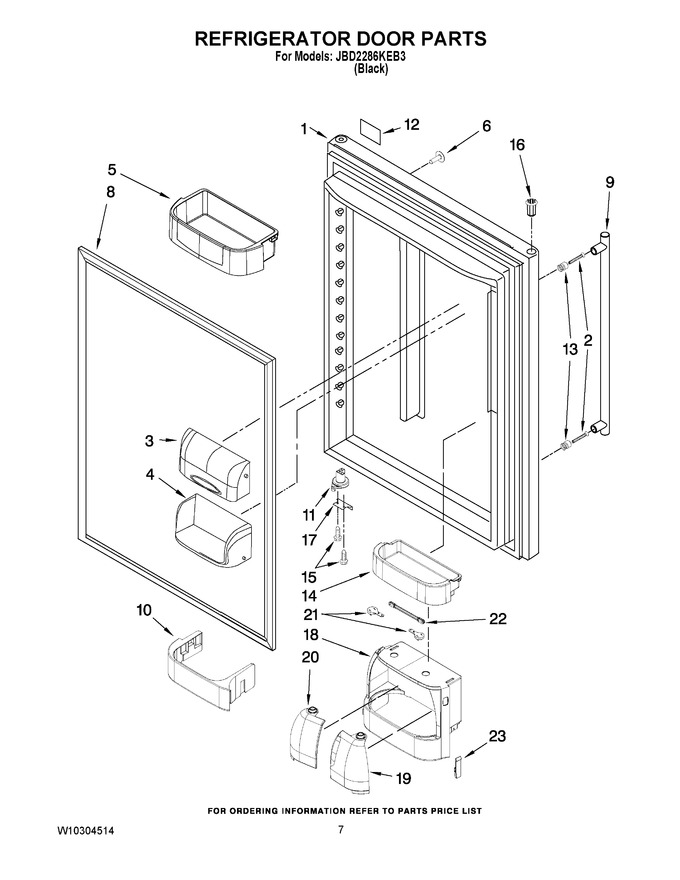

1	12658533BQ		Door, Refrigerator (black)				$ 672.96
2	WPW10133608		Screw   (Replaces: 12991202)				$ 8.30
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	67004040		Bucket, Medium (4)   (Replaces: 12801902V)				$ 91.42
6	WP12246608		Plug, Handle Hole (black)   (Replaces: 12246608)			Immediately	$ 7.76
8	WPW10436248		Gasket, Door (black)   (Replaces: W10164035)				$ 286.97
9	12850915		Handle, Door (stainless)		Appelez-nous	-
10	12805701		Retainer, Chiller		Appelez-nous	-
11	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
12	12848704		Nameplate				$ 60.12
13	12945201		Mount, Handle				$ 35.20
14	12830302SP		Bucket, Chiller		Appelez-nous	-
15	WP98165		Screw   (Replaces: 12990504)				$ 8.00
16	67004978		Bushing (4) (black)   (Replaces: 10961006B)				$ 21.05
17	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.05
18	12805801SP		Frame, Chiller		Appelez-nous	-
19	12805301SP		Door, Rh Chiller		Appelez-nous	-
20	12805402SP		Door, Lh Chiller		Appelez-nous	-
21	12568401SP		Linkage, Chiller		Appelez-nous	-
22	12568502SP		Linkage, Chiller Center		Appelez-nous	-
23	12827501SP		Hook, Chiller Frame		Appelez-nous	-
