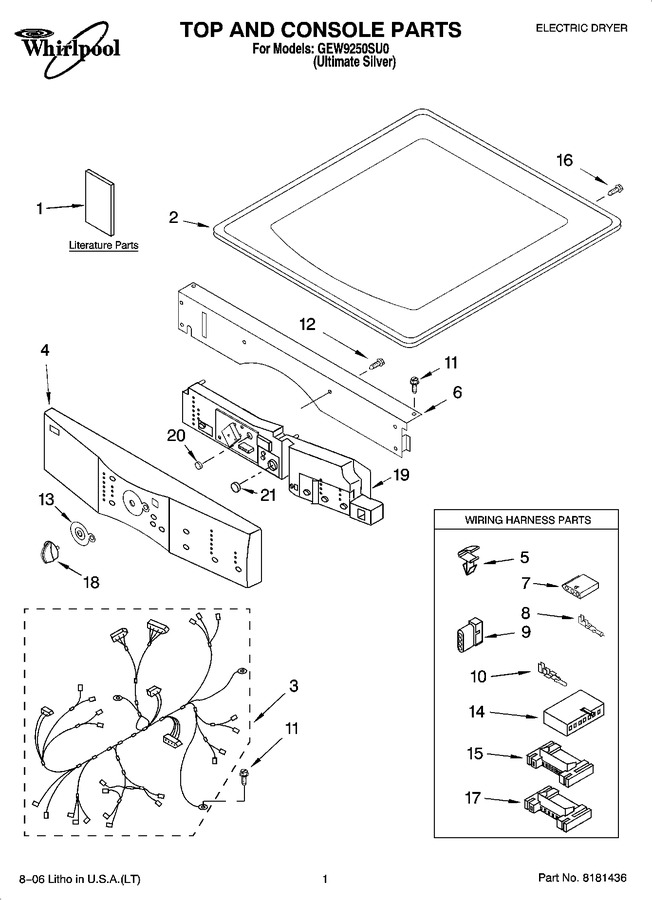

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8558722		Tech Sheet		Appelez-nous	-
1	W10049540		Use & Care Guide		Appelez-nous	-
1	8563723		Guide, Quick Start		Appelez-nous	-
2	8579115		Top (silver)		Appelez-nous	-
3	8529983		Harness, Main		Appelez-nous	-
4	8579111		Panel, Console (silver)		Appelez-nous	-
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
6	8519271		Bracket, Console		Appelez-nous	-
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
9	3936144		Plug, Terminal				$ 21.22
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
12	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
13	8519406		Bezel, Cycle		Appelez-nous	-
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8281225		Screw, 8-18 X 1/2		Appelez-nous	-
17	2203186		Connector, 5-circuit				$ 13.18
18	8183004		Knob, Assembly (silver)				$ 24.95
19	8559431		User Interface (silver)		Appelez-nous	-
20	8561811		Button, Start		Appelez-nous	-
21	8561812		Button, Pause/cancel		Appelez-nous	-
