01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts

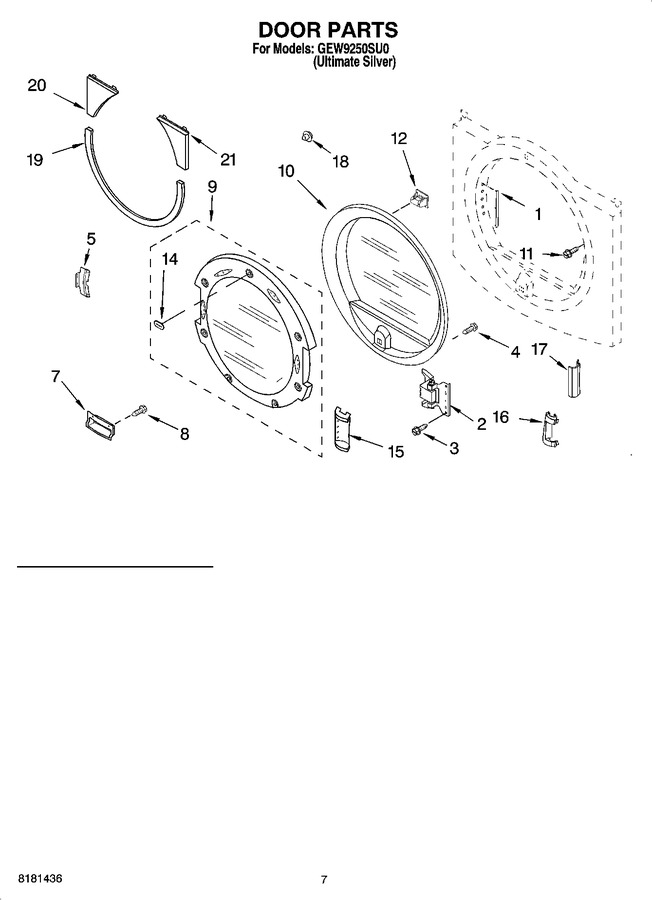

04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8066209 | Label, Hinge Hole |
|
- | |||||
| 2 | 8559709 | Door Hinge Assembly |
|
- | |||||
| 3 | 8534015 | Screw |
|
- | |||||
| 4 | W10850046 | Screw, 8-18 X 5/8 (Replaces: 9742177) |
|
Immediately | $ 7.19 | ||||
| 5 | 8529539 | Bracket, Handle |
|
- | |||||
| 7 | 8580142 | Handle, Door (lh) Handle Door (rh) (silver) |
|
- | |||||
| 7 | 8580141 | Handle, Door (lh) (silver) |
|
- | |||||
| 8 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 9 | 8579093 | Door Assembly (outer) (silver) |
|
- | |||||
| 10 | 8557501 | Door Assembly (inner) (includes Illus. 12) |
|
$ 160.79 | |||||
| 11 | WP355515 | Screw, 8-18 X 11/16 (Replaces: 355515) |
|
$ 7.67 | |||||
| 12 | WP3389441 | Door Catch Assembly (Replaces: 3389441) |
|
$ 6.20 | |||||
| 14 | 8529540 | Badge, Assembly |
|
- | |||||
| 15 | 8579097 | Filler Handle (lh) (silver) |
|
- | |||||
| 15 | 8579119 | Filler Handle (lh) Filler Handle (rh) (silver) |
|
- | |||||
| 16 | 8579121 | Cover-hinge, Stationary (rh) Cover-hinge Stationary (lh) (silver) |
|
- | |||||
| 16 | 8579099 | Cover-hinge, Stationary (rh) (silver) |
|
- | |||||
| 17 | 8579101 | Cover-hinge, Rotating (silver) |
|
- | |||||
| 18 | 8547091 | Clip, Trim Panel |
|
- | |||||
| 19 | 8579104 | Trim & Clip Assembly (lower) (silver) |
|
- | |||||
| 20 | 8579109 | Trim & Clip Assembly (lh) (silver) |
|
- | |||||
| 21 | 8579110 | Trim & Clip Assembly (rh) (silver) |
|
- | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 8529894 | Kit, Hold Down |
|
- | ||||||
| 8541503 | Kit, Stack Assembly |
|
Immediately | $ 43.18 | |||||
| 8530070 | Platinum |
|
$ 33.00 | ||||||
| 8530072 | Pewter |
|
$ 39.23 | ||||||
| 8530071 | Biscuit |
|
$ 34.64 | ||||||
| 8579123A | Ultimate Silver (Replaces: 8579123) |
|
$ 125.86 | ||||||
| 4392067 | Kit, Dryer Repair (Replaces: 80047) |
|
Immediately | $ 62.25 | |||||
| WP4396174 | Paint, Touch-up (1/2oz.) (pewter) (Replaces: 4396174) |
|
$ 28.20 | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 26.45 | |||||
| 8212605 | Paint, Touch-up (1/2oz.) (ultimate Silver) |
|
$ 16.01 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 4396175 | Paint, Pressurized Spray (12 Oz.) (pewter) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- |
