SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Compressor
02 - Compressor

Diagram for 03 - Controls
03 - Controls

Diagram for 04 - Evaporator Area & Rollers
04 - Evaporator Area & Rollers

Diagram for 05 - Freezer Door
05 - Freezer Door

Diagram for 06 - Ice Maker 61005508
06 - Ice Maker 61005508

Diagram for 07 - Interior Cabinet & Freezer Shelving
07 - Interior Cabinet & Freezer Shelving

Diagram for 08 - Refrigerator Door
08 - Refrigerator Door

Diagram for 09 - Refrigerator Shelving
09 - Refrigerator Shelving

No Diagram Image Available
10 - Supplemental Information

Diagram for 11 - Water Dispenser/filter
11 - Water Dispenser/filter

Diagram for 12 - Wiring Information
12 - Wiring Information


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12575102ED Back, Mc Appelez-nous -
2 67002514 Cover, Water Valve Appelez-nous -
3 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 6.95

4 681390 Screw   (Replaces: M0251015) Special Order $ 13.06

5 B5759649 Gasket, Mc Back Appelez-nous -
6 WPW10289690 Cover, Ice Maker   (Replaces: 10519807) In-Stock Immediately $ 8.40

6 D7824706Q Ice Maker Assy.   (Replaces: 61005508) In-Stock Immediately $ 167.35

6 WP2256087 Brkt, Ice Maker   (Replaces: 67002823) Special Order $ 93.00

6 WPD7813010 Harness, Ice Makerx   (Replaces: 67001489) In-Stock Immediately $ 73.97

6 WP67004028 Arm, Ice Maker   (Replaces: 67001257) In-Stock Immediately $ 91.35

7 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.00

8 W10823511 Tube, Plastic   (Replaces: B5705323) In-Stock Immediately $ 32.41

9 WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) In-Stock Immediately $ 7.82

10 WP12544002 Valve, Primary Water   (Replaces: 12544002) In-Stock Immediately $ 244.10

11 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 7.78

12 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.05

13 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 10.97

14 W10833902 Clamp, Tube   (Replaces: M0108105) Special Order $ 10.99

15 A1055105 Spring, Anti Kink Appelez-nous -
16 W11176463 Elbow, Fill Tube   (Replaces: 10463201) In-Stock Immediately $ 114.15

17 67001725 Fiber, Acoustic Appelez-nous -
18 12002193 Valve, Secondary Water   (Replaces: 67001726) Special Order $ 206.00

19 A1055104 Spring, Anti-kink Appelez-nous -
20 M0753002 Nut, Sleeve Appelez-nous -
21 M0104102 Clip, Cord Special Order $ 8.10

22 WP67001255 Pan, Ice   (Replaces: 67001255) Special Order $ 203.08

23 WP67006506 Cord, Power   (Replaces: 12583301) Special Order $ 26.42


    View Diagram in Separate Window     Print Icon   Print Part List

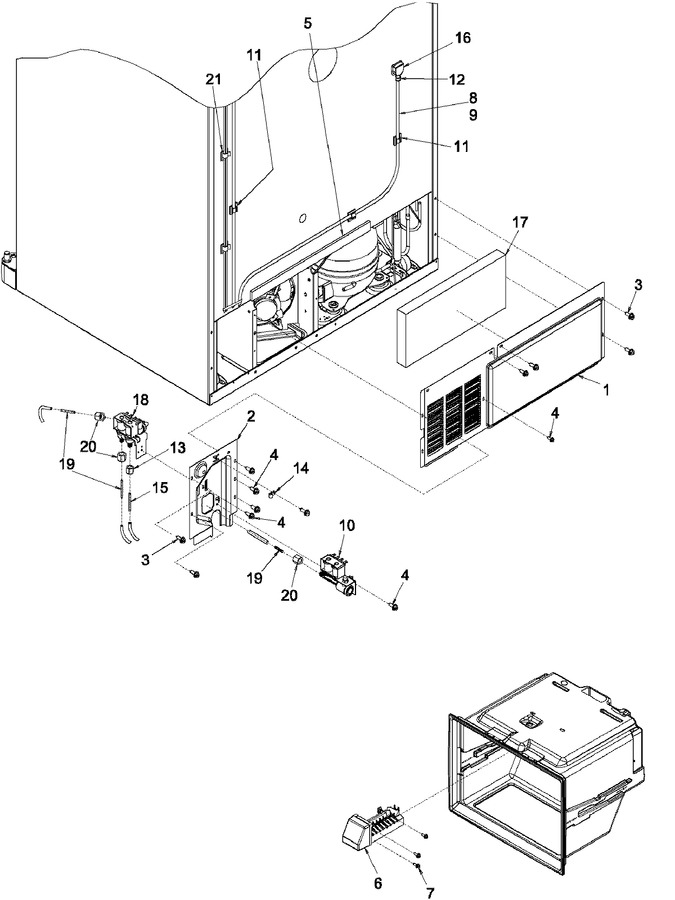

Diagram for JCB2059GES (BOM: PJCB2059GS1)
