SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Ice Maker 61005508


07 - Interior Cabinet & Freezer Shelving


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplemental Information


11 - Water Dispenser/filter


12 - Wiring Information

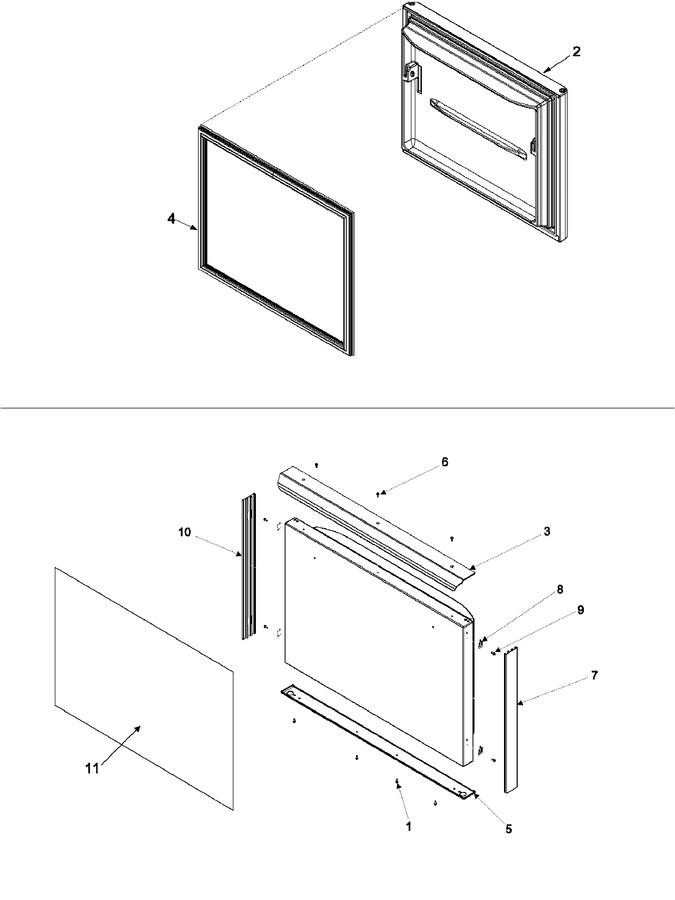

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)			Immediately	$ 14.75
2	67002115		Door Assy., Frz. Foam (blk)		Appelez-nous	-
3	67003415		Handle, Fz Dr (stnls)		Appelez-nous	-
4	W10436252		Gasket, Fz Door (blk)   (Replaces: 12683806B)			Immediately	$ 362.28
5	67002194		Trim, Door Bottom (stnls)		Appelez-nous	-
6	340184		Screw   (Replaces: 67003115)				$ 14.11
7	67002995		Trim, Fz Door Side (stnls)		Appelez-nous	-
8	67002451		Clip				$ 8.86
9	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
10	67003114		Mount, Handle		Appelez-nous	-
11	67003117		Panel, Fz Dr (stnls)		Appelez-nous	-
11	67003206		Spacer, Fz Panel		Appelez-nous	-
12	67002252		Trim, Door Top (stnls)		Appelez-nous	-
13	67003113		Spacer, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
