01 - Cooktop Parts

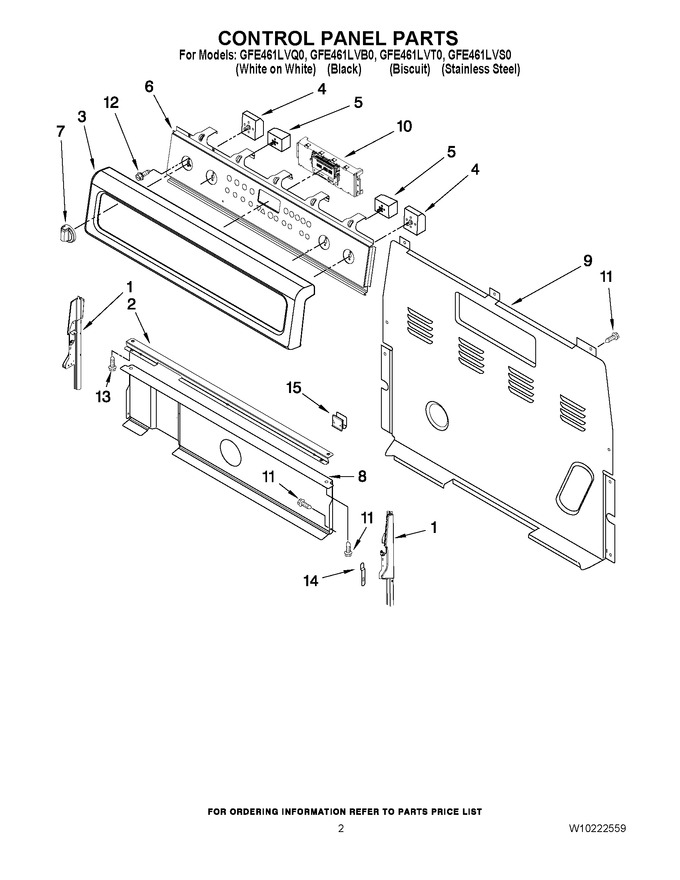

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11230611 | Endcap (biscuit Left Hand) (Replaces: W10184435) |
|
- | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11230612 | Endcap (biscuit Right Hand) (Replaces: W10184436) |
|
- | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 3 | W10201509 | Panel, Backguard (black) |
|
$ 114.95 | |||||
| 3 | W10201510 | Panel, Backguard (stainless Steel) |
|
$ 116.83 | |||||
| 3 | W10201507 | Panel, Backguard (white) |
|
$ 115.53 | |||||
| 3 | W10201508 | Panel, Backguard (biscuit) |
|
- | |||||
| 4 | WPW10149355 | Switch, Infinite Left & Right Front (dual Elemt) (Replaces: W10149355) |
|
Immediately | $ 204.91 | ||||
| 5 | WP3149404 | Switch, Infinite (left & Right Rear (single Elemt)) (Replaces: W10295576) |
|
Immediately | $ 61.45 | ||||
| 6 | W10224757 | Active Overlay Assembly (white) |
|
$ 202.34 | |||||
| 6 | WPW10224758 | Active Overlay Assembly (black) (Replaces: W10224758) |
|
$ 367.28 | |||||
| 6 | WPW10224758 | Active Overlay Assembly (biscuit) (Replaces: W10224759) |
|
$ 367.28 | |||||
| 7 | W10154955 | Knob, Infinite (4) (white) |
|
$ 21.22 | |||||
| 7 | W10155338 | Knob, Infinite (4) (biscuit) |
|
- | |||||
| 7 | W10155337 | Knob, Infinite (4) (black) |
|
$ 20.15 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 10 | W10157242 | Control, Range |
|
- | |||||
| 11 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 12 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 13 | 3196166 | Screw (white) |
|
$ 7.36 | |||||
| 13 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 14 | 3196200 | Clip, Spring (2) |
|
$ 10.45 | |||||
| 15 | WP8273564 | Clip - Cover (Replaces: 8273564) |
|
$ 12.66 |
