01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

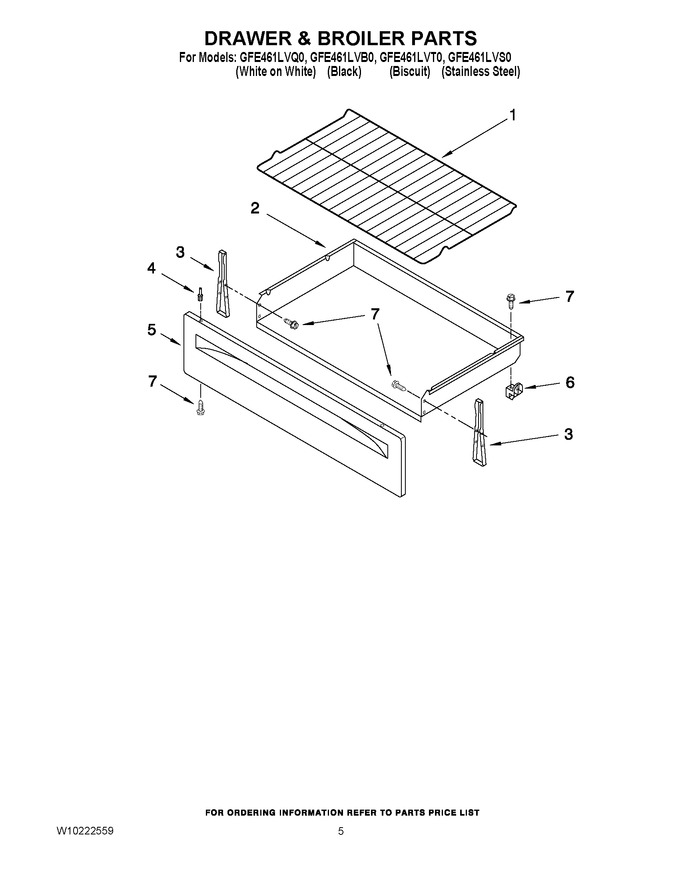

04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | W10296838 | Drawer, Storage |
|
- | |||||
| 3 | WPW10462912 | Bracket, Drawer (2) (Replaces: W10174396) |
|
Immediately | $ 133.76 | ||||
| 4 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 4 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 5 | W11219377 | Drawer Front (white) (Replaces: 8053339) |
|
$ 212.57 | |||||
| 5 | W11230488 | Drawer Front (black) (Replaces: 8053341) |
|
$ 212.44 | |||||
| 5 | W11230476 | Drawer Front (biscuit) (Replaces: 8272501) |
|
$ 206.02 | |||||
| 5 | W10282465 | Drawer Front (stainless) |
|
$ 115.68 | |||||
| 6 | WP8053334 | Glide, Drawer (2) (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 7 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 |
