Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67003579 Elbow, Fill Tube 10 Special Order $ 22.74

2 WPM0114003 Clip, Speed   (Replaces: M0114003) 10 Special Order $ 11.60

3 WPB5705307 Tube, Plastic   (Replaces: 67003360) 10 Special Order $ 13.05

4 WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) 10 In-Stock Immediately $ 8.21

5 WPM0104106 Clip   (Replaces: M0104106) 10 Special Order $ 8.17

6 WP67006506 Cord, Power   (Replaces: 12583301) 10 Special Order $ 27.74

6 WP67006506 Cord, Power   (Replaces: 67006506) 12 Special Order $ 27.74

7 WP489399 Screw, Ca   (Replaces: M0239216) 10 Special Order $ 7.30

8 B5759649 Gasket, Mc Back 10 Appelez-nous -
9 67003796 Fiber, Acoustic 10 Special Order $ 19.27

10 67006101 Cover, Mc Back 12 Special Order $ 76.68

10 12575101ED Back, Mach Comp 10 Appelez-nous -
11 67006425 Screw, Sm   (Replaces: M0238616) 10 In-Stock Immediately $ 7.30

12 681390 Screw   (Replaces: M0251015) 10 Special Order $ 13.71

13 WPW10139210 Screw, Tc   (Replaces: M0226528) 10 Special Order $ 8.03

13 12479803 Cover, Water Valve 10 Appelez-nous -
14 WP67003753 Valve, Water   (Replaces: 67003753) 10 In-Stock Immediately $ 109.40

15 W10833902 Clamp, Tube   (Replaces: M0108105) 10 Special Order $ 11.54

16 WPB2150504 Drier   (Replaces: B2150504) 10 Special Order $ 136.98

17 10547002 Clip, Drier 10 Appelez-nous -
17 67002999 Screw, Sm 10 Appelez-nous -
18 M0102303 Clamp 10 Appelez-nous -
18 WP489069 Screw   (Replaces: M0220617) 10 In-Stock Immediately $ 8.40

19 12580401 Tube, Drain 10 Appelez-nous -
20 12002609 Kit, Hv Board Control 10 Appelez-nous -
21 67004969 Box, Hv Control 10 Appelez-nous -
22 67005418 Spacer, Hv Box 10 Appelez-nous -
23 67005436 Harness, Hv Board 10 Appelez-nous -
24 67005420 Screw, Sm 10 Appelez-nous -
25 67005421 Cover, Hv Box 10 Special Order $ 64.83

25 67005332 Screw 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

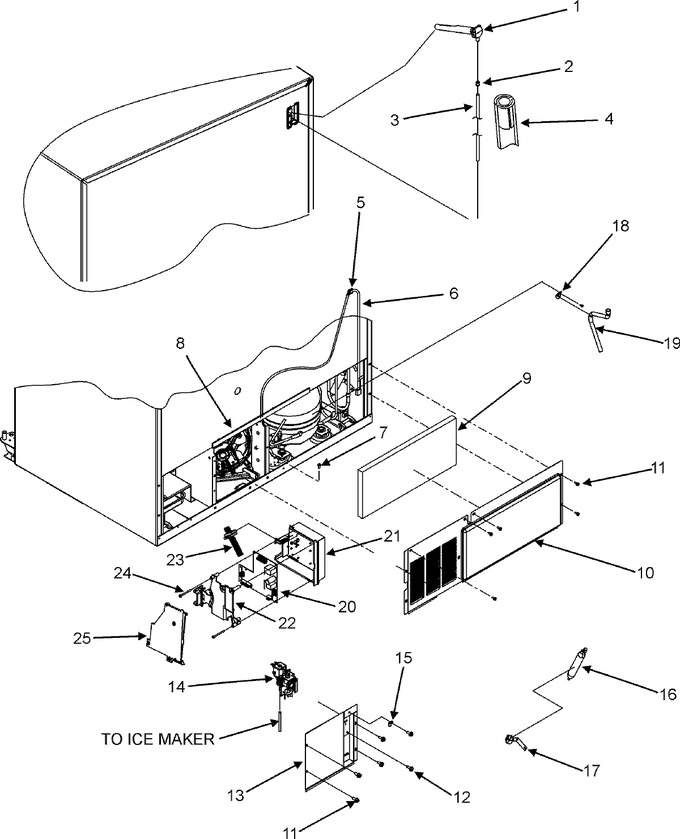

Diagram for JCB2282KTW
