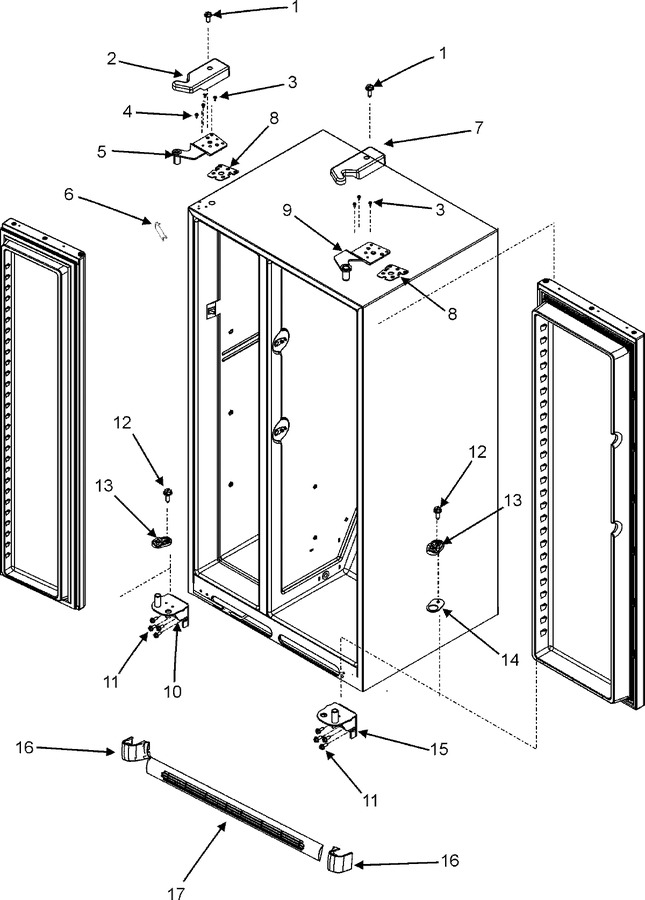

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8281196		Screw-mach   (Replaces: M0202327)	10		Immediately	$ 7.19
2	12629802W		Cover, Top Hinge (lt-wht)	10	Appelez-nous	-
3	R9800670		Screw, Tf   (Replaces: M0238731)	10			$ 9.38
4	W11214483		Screw, Mach   (Replaces: M0202321)	10			$ 14.02
5	12626911ED		Hinge, Top (lt-blk)   (Replaces: 12626902ED)	10			$ 84.81
6	67003484		Cover, Corner (wht)	10			$ 20.40
7	12629801W		Cover, Top Hinge (rt-wht)	10			$ 24.68
8	12695601		Shim, Top Hinge	10	Appelez-nous	-
9	12626910ED		Hinge, Top (rt-blk)   (Replaces: 12626901ED)	10			$ 118.92
10	12636901ED		Hinge, Bottom (lt-blk)	10			$ 34.72
11	WP67006715		Screw, Sm   (Replaces: M0241608)	10			$ 7.19
12	W11227370		Screw, Tc   (Replaces: M0220431)	10		Immediately	$ 14.20
13	R0181181		Closure, Door (blk)   (Replaces: 12431302)	10		Immediately	$ 7.19
13	67006134		Closure, Door (blk)	12	Appelez-nous	-
14	WP67005716		Shim, Dr Closure (blk)   (Replaces: 10361806)	10			$ 7.46
15	12636902ED		Hinge, Bottom (rt-blk)	10	Appelez-nous	-
16	12630301W		Cover, Lwr Hinge (wht)	10	Appelez-nous	-
17	WP67006687		Grille, Toe (wht)   (Replaces: 67006836)	12			$ 106.44
17	67002223		Grille Assy., Toe (wht)	10	Appelez-nous	-
17	12627302		Clip, Toe Grille	10			$ 5.84
