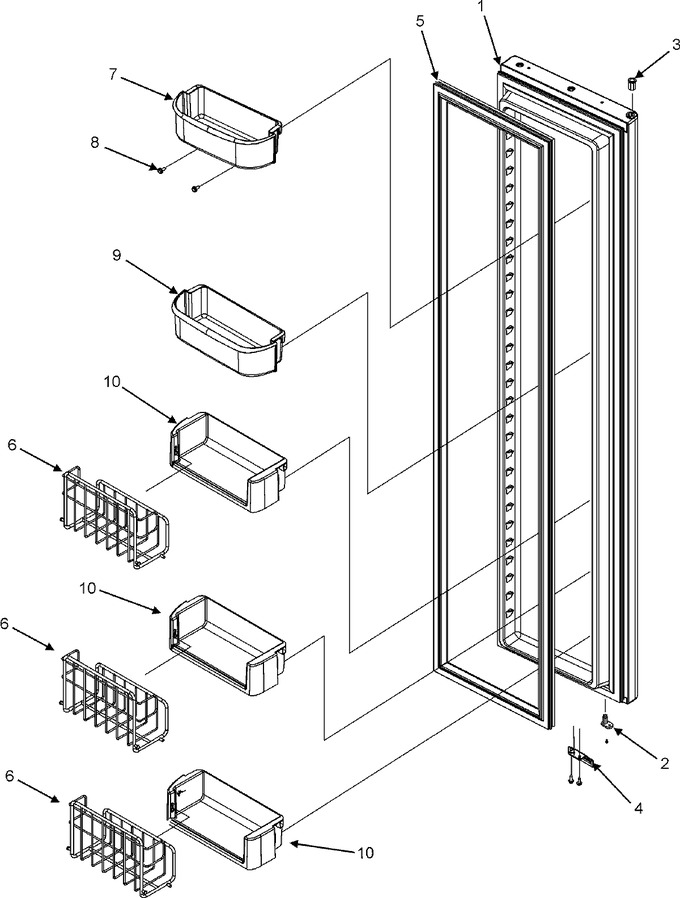

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67005191		Door Assy., Frz. Glass (blk)	10	Appelez-nous	-
1	67007051		Door Assy., Frz. Glass (blk)	12	Appelez-nous	-
2	R0181181		Closure, Door (blk)   (Replaces: 12113204)	10		Immediately	$ 7.19
2	WP8281227		Screw, Tc   (Replaces: M0220432)	10			$ 10.44
2	67006134		Closure, Door (blk)	12	Appelez-nous	-
3	67004627		Bushing, Door (blk)	10	Appelez-nous	-
4	67006518		Stop, Door (blk)	12	Appelez-nous	-
4	67006672		Screw	12	Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: M0211018)	10			$ 8.00
4	12636401B		Stop, Door (blk)	10			$ 10.80
5	W10133491		Gasket, Frz. Door (blk)   (Replaces: 67003967)	10			$ 342.75
6	67004474		Basket, Tilt	10	Appelez-nous	-
7	12664901		Bucket-conv Fz Dr	10	Appelez-nous	-
8	67005160		Screw Sm	10	Appelez-nous	-
9	12557501		Bucket, Lwr Fz Dr	10			$ 17.64
10	67004475		Frame, Tilt Basket	10	Appelez-nous	-
