SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Doors (exterior)


06 - Evap Fan/convection Fan/crisp Light


07 - Evaporator/rollers


08 - Freezer Compartment


09 - Freezer Door (interior)


10 - Freezer Shelves


11 - Hinges & Toe Grille


12 - Ice Maker


13 - Refrigerator Door (interior)


14 - Refrigerator Shelves


15 - Supplemental Information

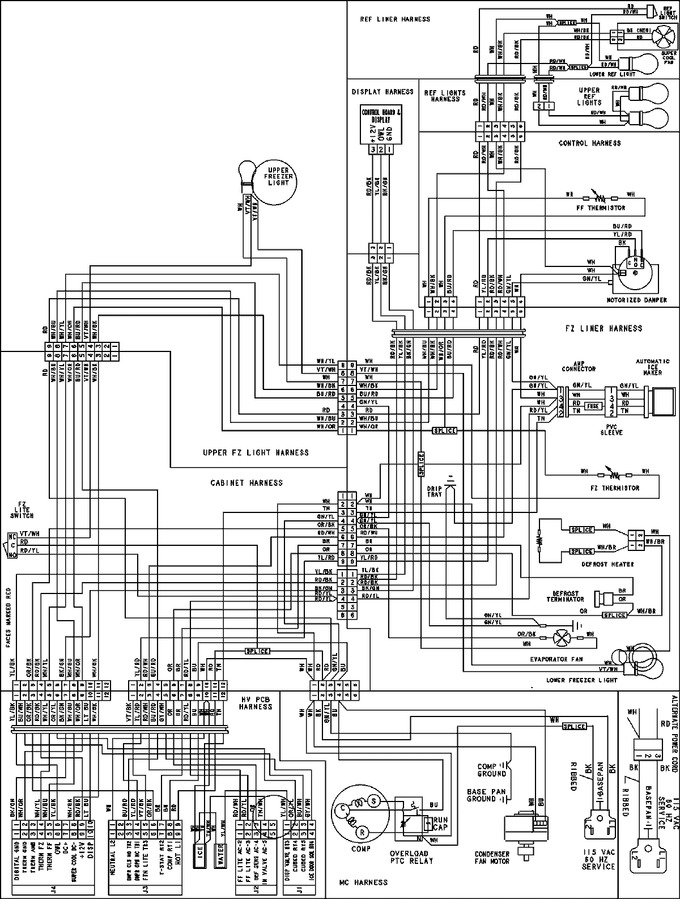

16 - Wiring Information (series 10)


17 - Wiring Information (series 12)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
NI	15003913		Wiring Information	12	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
