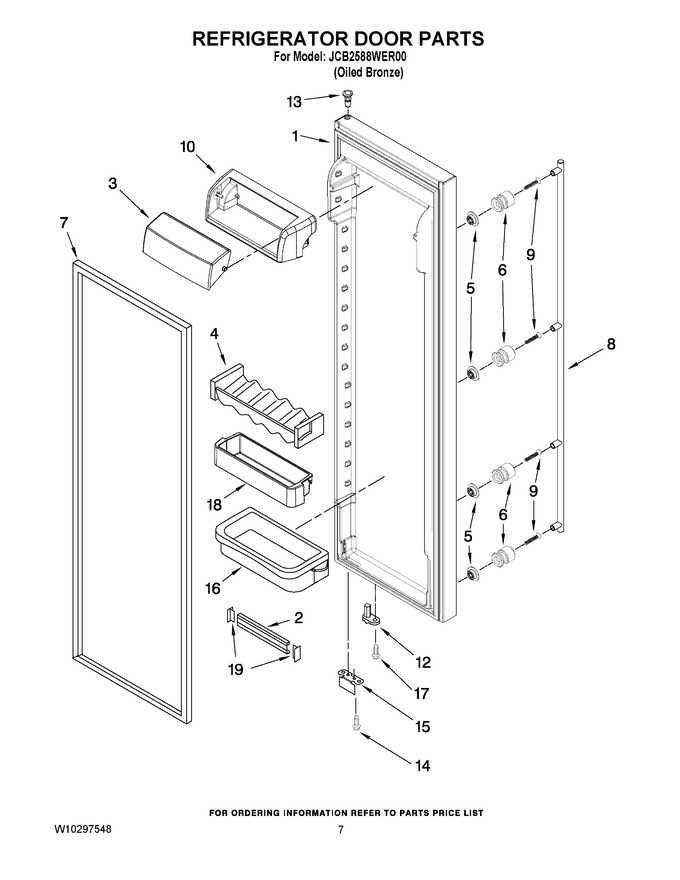

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10214163 | Refrigerator Door (includes No.7) (oiled Bronze) |
|
- | |||||
| 2 | 2203087 | Trim, Shelf |
|
$ 42.91 | |||||
| 3 | 2255421 | Dairy Door |
|
$ 34.76 | |||||
| 4 | 2223883 | Caddy, Can |
|
$ 34.98 | |||||
| 5 | W10214142 | Spacer, Hdl (4) |
|
- | |||||
| 6 | 67006109 | Mount, Hdl (4) |
|
- | |||||
| 7 | 2306996 | Door Gasket, Magnetic (black) (Replaces: 2223909) |
|
$ 335.10 | |||||
| 8 | W10202814 | Handle (oiled Bronze) |
|
- | |||||
| 9 | WPW10170540 | Screw, Mount (4) (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 10 | 2223879 | Dairy Compartment |
|
$ 40.49 | |||||
| 12 | 2307048 | Thimble Cam, Rc |
|
- | |||||
| 13 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 14 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 15 | 2306940B | Bracket, Door Stop (black) |
|
$ 38.97 | |||||
| 16 | WP2223860 | Door Bin (3) (Replaces: 2223860) |
|
Immediately | $ 84.05 | ||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 18 | WP2224173 | Door Bin, Shallow (Replaces: 2224173) |
|
$ 91.69 | |||||
| 19 | WP2156006 | Plug, Trim (Replaces: 2156006) |
|
Immediately | $ 12.79 |
