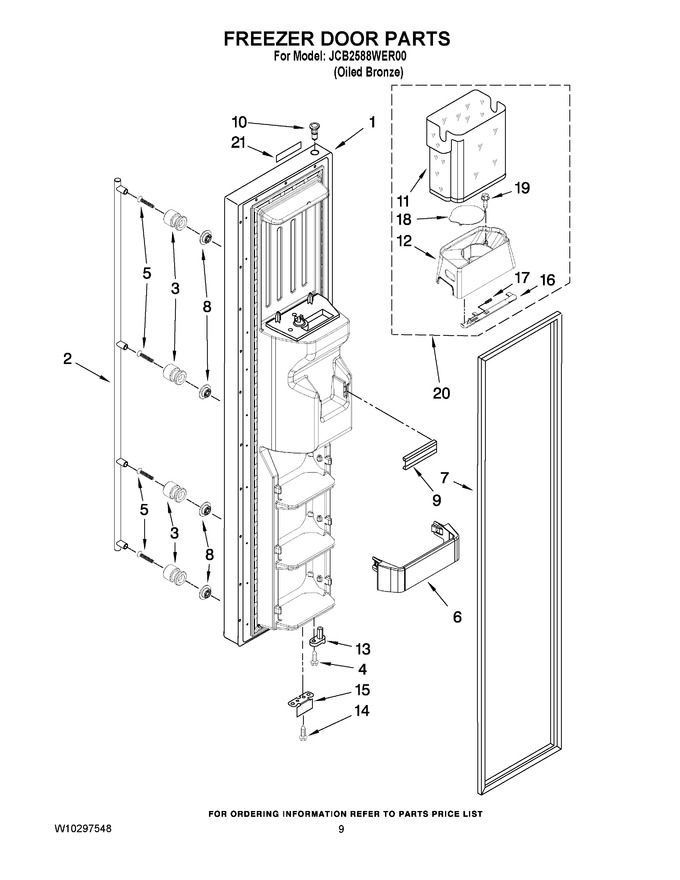

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10214165 | Freezer Door (includes No.8 And Dispenser Front Parts) (oiled Bronze) |
|
- | |||||
| 2 | W10202814 | Handle (oiled Bronze) |
|
- | |||||
| 3 | 67006109 | Mount, Hdl (4) |
|
- | |||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 5 | WPW10170540 | Screw, Mount (4) (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 6 | 2223559K | Shelf Bin (3) |
|
- | |||||
| 7 | 2306995 | Door Gasket, Magnetic (black) (Replaces: 2223910) |
|
$ 331.26 | |||||
| 8 | W10214142 | Spacer, Hdl (4) |
|
- | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 24.27 | ||||
| 10 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 11 | 2223317 | Upper Bin |
|
$ 74.94 | |||||
| 12 | W10162938 | Lower Bin |
|
- | |||||
| 13 | 2307050 | Thimble Cam, Fc |
|
$ 39.47 | |||||
| 14 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 15 | 2306940B | Bracket, Door Stop (black) |
|
$ 38.97 | |||||
| 16 | 2317272 | Latch, Bin |
|
- | |||||
| 17 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 7.55 | |||||
| 18 | W10131326 | Cover, Crusher |
|
- | |||||
| 19 | WP3400065 | Screw (2) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 20 | W10162937 | Ice Container (complete) |
|
- | |||||
| 21 | W10214169 | Badge, Jenn-air |
|
$ 53.42 |
