SELECT A DIAGRAM

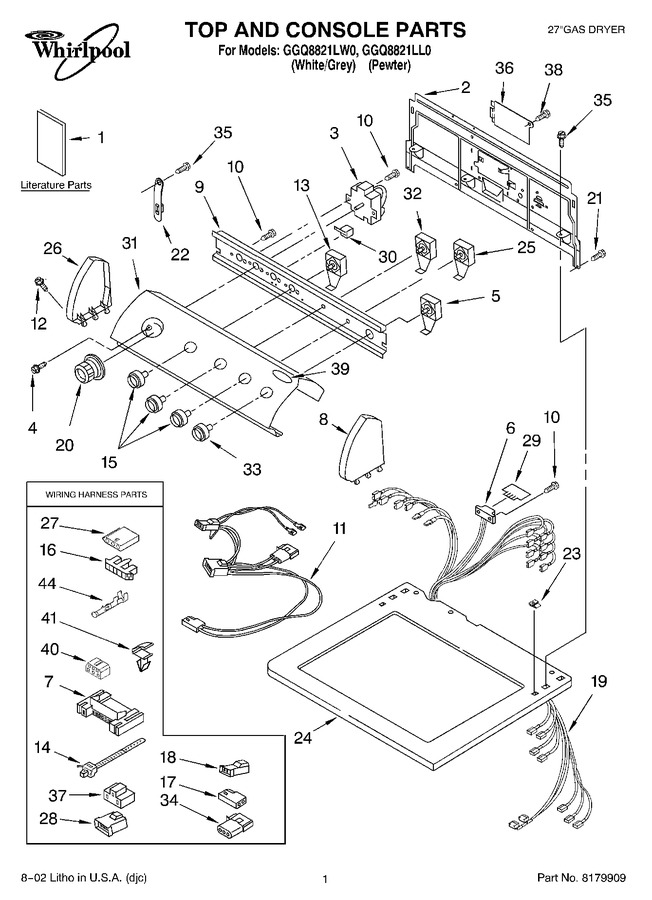

01 - Top And Console, Literature


02 - Cabinet


03 - Bulkhead


04 - 8318276 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8299800		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT8535841		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8535837		Literature Parts (guide, Use & Care)		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 248.97
3	WP3406725		Timer   (Replaces: 3406725)				$ 368.58
4	3400859		Screw, Grounding (8-18 X 7/32)				$ 13.22
5	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
6	3391885		Connector, Edge				$ 86.40
7	3395683		Connector (motor)			Immediately	$ 51.86
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
8	3956023		Cap, End (r.h.) (pewter)		Appelez-nous	-
9	8271316		Bracket, Control		Appelez-nous	-
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
11	WP3401850		Harness, Gas   (Replaces: 3401850)				$ 242.98
12	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
13	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 223.93
14	WP3391018		Tie Cable (push Mount)   (Replaces: 3391018)				$ 31.84
15	WP8538957		Knob, Control (3)   (Replaces: 8316540)				$ 55.74
16	3397269		Connector, Timer				$ 25.55
17	717252		Receptacle, 2 Way		Appelez-nous	-
18	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
19	8529979		Harness, Wiring		Appelez-nous	-
20	WP8557455		Timer Knob Assembly   (Replaces: 8316538)				$ 56.77
21	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
22	WP8568314		Strap, Console   (Replaces: 8318255)				$ 7.78
23	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
24	8535850		Top (pewter)		Appelez-nous	-
24	8535848		Top (white)		Appelez-nous	-
25	3405152		Switch, End Of Cycle				$ 131.07
26	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
26	3956024		Cap, End (l.h.) (pewter)		Appelez-nous	-
27	3936144		Connector				$ 20.21
28	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
29	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
30	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
31	8532645		Panel, Control (includes Illus. 39)		Appelez-nous	-
32	3405154		Switch, Wrinkle Shield				$ 152.88
33	8316541		Knob, Push-to-start		Appelez-nous	-
34	697779		Plug, 3-way		Appelez-nous	-
35	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
36	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
37	3401144		Connector, (pts Relay)				$ 12.20
38	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
39	3955776		Medallion		Appelez-nous	-
40	3347243		Connector 6-circuit		Appelez-nous	-
41	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
44	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
	LIT677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
