SELECT A DIAGRAM

01 - Top And Console, Literature


02 - Cabinet

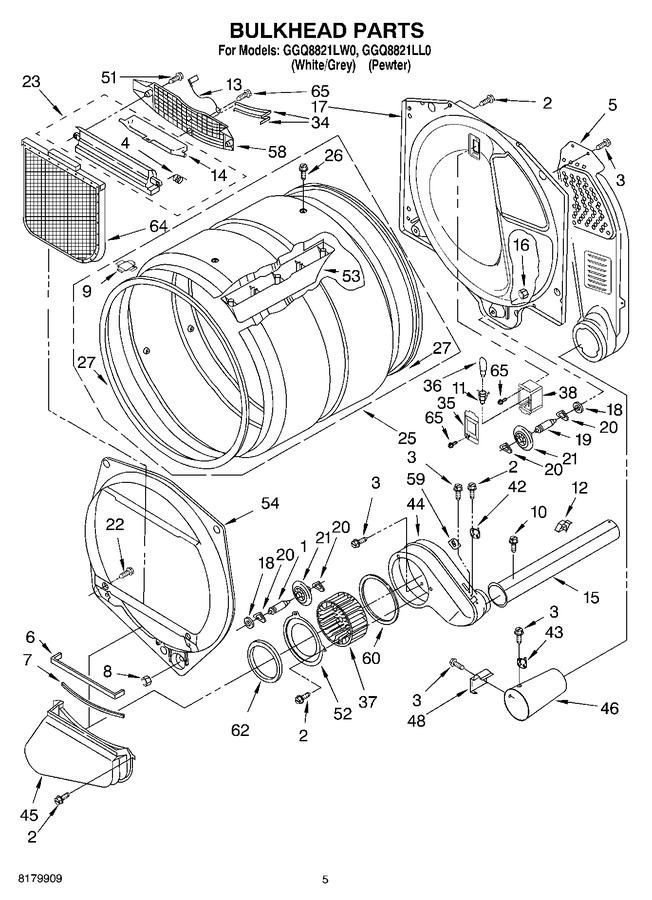

03 - Bulkhead


04 - 8318276 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, R.h. Thread   (Replaces: 3399508)			Immediately	$ 62.21
2	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
3	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
4	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 84.59
5	W11168650		Air Duct Assembly   (Replaces: 3394346)				$ 97.66
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 7.97
7	WP697813		Seal, Drum Front   (Replaces: 697814)			Immediately	$ 7.97
8	WP3359452		Nut, 3/8 X 16 (r.h.)   (Replaces: 3359452)			Immediately	$ 7.19
9	8066086		Drum, Hole Plug				$ 10.75
10	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
11	W11700522		Socket Assembly   (Replaces: 3403634)				$ 73.15
12	WP3388229		Clip   (Replaces: 3388229)			Immediately	$ 8.45
13	3392258		Ground-sensor		Appelez-nous	-
14	W11222846		Door, Lint Screen   (Replaces: 3394984)			Immediately	$ 203.72
15	279936		Exhaust Pipe   (Replaces: 8318486)				$ 146.84
16	3387709		Nut, 3/8-16 (l.h.)				$ 5.60
17	W11299301		Bulkhead, Rear   (Replaces: 8520836)				$ 247.75
18	W11236646		Washer, Support   (Replaces: 3387459)			Immediately	$ 14.03
19	WPW10359272		Shaft, L.h. Thread   (Replaces: 3399509)			Immediately	$ 58.48
20	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: 8536973)			Immediately	$ 28.50
22	WP488729		Screw, 8-18 X 1/2   (Replaces: 695240)			Immediately	$ 7.79
23	W11129408		Outlet Housing Assembly   (Replaces: 3394985)			Immediately	$ 53.28
25	W10545923		Complete Drum Assembly   (Replaces: 8318215)				$ 436.76
26	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.00
27	280114		Seal, Drum   (Replaces: 697694)			Immediately	$ 70.82
34	WP3387223		Electrode, Sensor   (Replaces: 3387223)			Immediately	$ 6.17
35	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 31.09
36	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 13.66
37	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 59.07
38	3977373		Bracket, Drum Light				$ 105.79
42	WP8318268		Thermostat, Internal-bias   (Replaces: 8318268)			Immediately	$ 80.57
43	W11050897		Thermostat, High-limit 205~f (96~c)   (Replaces: 3403140)			Immediately	$ 15.30
44	WP8544363		Housing, Blower   (Replaces: 8530038)				$ 152.63
45	8530036		Lint Duct Assembly				$ 75.27
46	WP8066047		Funnel, Burner   (Replaces: 8066047)				$ 149.26
48	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
51	WP3387230		Screw, 10-16 X 1   (Replaces: 3387230)			Immediately	$ 8.54
52	279780		Cover, Blower (includes Illus. 62)   (Replaces: 697771)				$ 92.95
53	W11782150		Baffle, Drum   (Replaces: 697693)			Immediately	$ 91.02
54	WP697557		Bulkhead, Front   (Replaces: 697557)				$ 208.03
58	W11086603		Grill, Outlet   (Replaces: 8299979)			Immediately	$ 35.14
59	WP3390719		Thermal-fuse   (Replaces: 3390719)			Immediately	$ 31.57
60	WP697770		Seal, Cover Plate   (Replaces: 697770)			Immediately	$ 7.88
62	WP8566209		Seal, Lint Duct   (Replaces: 697769)				$ 55.45
64	W10120998		Lint, Screen   (Replaces: 3390721)				$ 67.16
65	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
65	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
65	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
65	4396175		Pewter		Appelez-nous	-
65	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
65	WP488729		Screw, 8-15 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
65	4392067		Kit, Dryer Repair			Immediately	$ 62.25
65	8212450A		Dry Rack   (Replaces: 3406911)			Immediately	$ 83.99
65	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
65	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 11.75
65	WP4396174		Pewter   (Replaces: 4396174)				$ 28.20

    View Diagram in Separate Window       Print Part List
