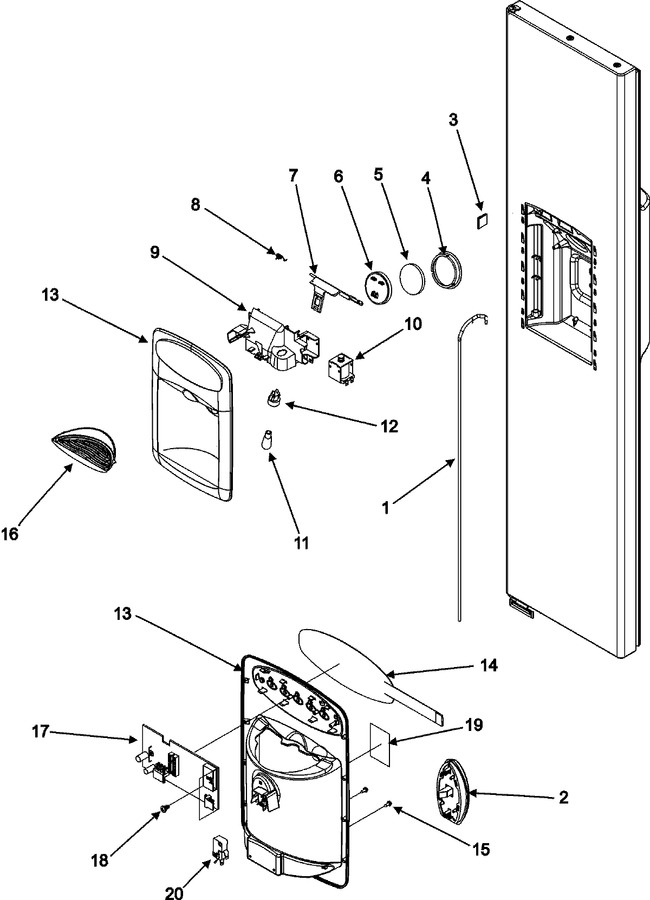

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10833902 | Clamp, Tube (Replaces: M0108105) | 10 |
|
$ 10.99 | ||||
| 1 | 67004938 | Waterline Assy. (Replaces: 67005035) | 10 |
|
$ 132.60 | ||||
| 2 | 67004511 | Actr Pad Frame Assy. (blk) | 10 |
|
- | ||||
| 3 | M0104102 | Clip, Cord | 10 |
|
$ 8.10 | ||||
| 4 | 12665101 | Seal, Ice Chute | 10 |
|
$ 5.84 | ||||
| 5 | 12563401 | Insul, Chute Doorxx | 10 |
|
- | ||||
| 6 | 12562701 | Door, Ice Chute | 10 |
|
$ 5.84 | ||||
| 7 | 67004119 | Hinge, Ice Chute | 10 |
|
$ 5.70 | ||||
| 8 | WP12565502 | Spring, Chute Dr (Replaces: 12565502) | 10 |
|
$ 7.81 | ||||
| 9 | WP67006534 | Extension, Ice Chute (Replaces: 67004120) | 10 |
|
$ 120.36 | ||||
| 9 | WP67006534 | Extension, Ice Chute (Replaces: 67006534) | 12 |
|
$ 120.36 | ||||
| 9 | 67006425 | Screw, Sm (Replaces: M0238642) | 10 |
|
Immediately | $ 6.95 | |||
| 10 | 67006000 | Solenoid | 12 |
|
- | ||||
| 10 | 12575401 | Solenoid | 10 |
|
- | ||||
| 10 | WP488234 | Screw, Mach (Replaces: M0200314) | 10 |
|
$ 6.74 | ||||
| 11 | W10857122 | Bulb, Light (Replaces: 67001316) | 10 |
|
$ 13.83 | ||||
| 12 | 12617501 | Socket, Light | 10 |
|
- | ||||
| 13 | 67005519 | Facade (blk) | 10 |
|
- | ||||
| 14 | 67005446 | Keyboard, 6b Membrane (blk) | 10 |
|
$ 131.60 | ||||
| 15 | R9800670 | Screw, Mounting (Replaces: M0223230) | 10 |
|
$ 9.38 | ||||
| 16 | WP67005636 | Tray, Sump (blk) (Replaces: 67004521) | 10 |
|
$ 65.52 | ||||
| 17 | WPW10204681 | Board, Control (Replaces: 67005399) | 10 |
|
$ 312.83 | ||||
| 18 | 2006254 | Screw,hi/lo (Replaces: M0237902) | 10 |
|
$ 13.13 | ||||
| 19 | 67005521 | Label, Dispenser | 10 |
|
- | ||||
| 20 | WP12575502 | Switch, Limit (Replaces: 12575502) | 10 |
|
Immediately | $ 48.74 |
