01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evap Fan/convection Fan/crisp Lt/filter


06 - Evaporator Assy./rollers/water Tank


07 - Fountain


08 - Freezer Compartment


09 - Freezer Door


10 - Freezer Shelves


11 - Handles & Trim


12 - Hinges


13 - Ice Bucket Assy.


14 - Ice Maker


15 - Refrigerator Door


16 - Refrigerator Shelves


17 - Supplemental Information


18 - Wiring Information

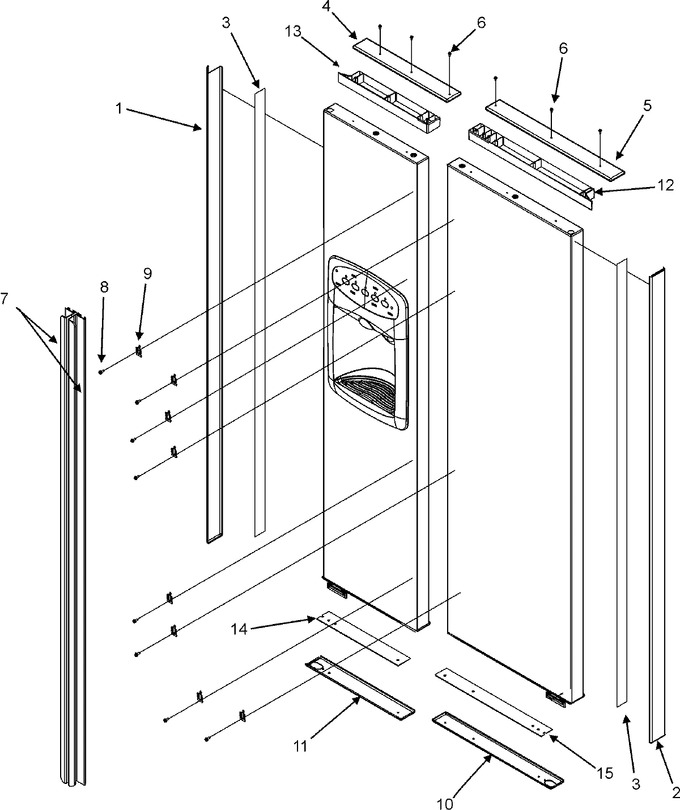

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12638301S		Trim, Vert Fz (stnls)	10	Appelez-nous	-
2	12638302S		Trim, Vert Ref (stnls)	10	Appelez-nous	-
3	M0275178		Tape Double Back (roll)k	10	Appelez-nous	-
4	12626505S		Trim, Top Fz Dr (stnls)	10	Appelez-nous	-
5	12626502S		Trim, Top Ref Dr (stnls)	10	Appelez-nous	-
6	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)	10		Immediately	$ 14.75
7	67004459		Handle, Door	10	Appelez-nous	-
8	WP489399		Screw, Se   (Replaces: M0232929)	10			$ 7.30
9	12315101		Clip	10	Appelez-nous	-
10	67006798		Trim, Btm Ref Door (stnls)	12	Appelez-nous	-
10	67004202		Trim, Btm Ref Door (stnls)	10	Appelez-nous	-
10	WP98165		Screw, Sm   (Replaces: 67004822)	10			$ 8.57
11	67006799		Trim, Btm Frz Door (stnls)	12	Appelez-nous	-
11	WP98165		Screw, Sm   (Replaces: 67004822)	10			$ 8.57
11	67004201		Trim, Btm Frz Door (stnls)	10	Appelez-nous	-
12	67003750		Ext., Ref. Door (blk)	10	Appelez-nous	-
12	WP98165		Screw, Sm   (Replaces: 67004822)	10			$ 8.57
13	67003749		Ext., Frz. Door (blk)	10	Appelez-nous	-
13	WP98165		Screw, Sm   (Replaces: 67004822)	10			$ 8.57
14	67005476		Support, Frz. Trim	10	Appelez-nous	-
14	67006800		Support, Frz. Trim	12	Appelez-nous	-
15	67005477		Support, Ref. Trim	10	Appelez-nous	-
15	67006801		Support, Ref. Trim	12	Appelez-nous	-
