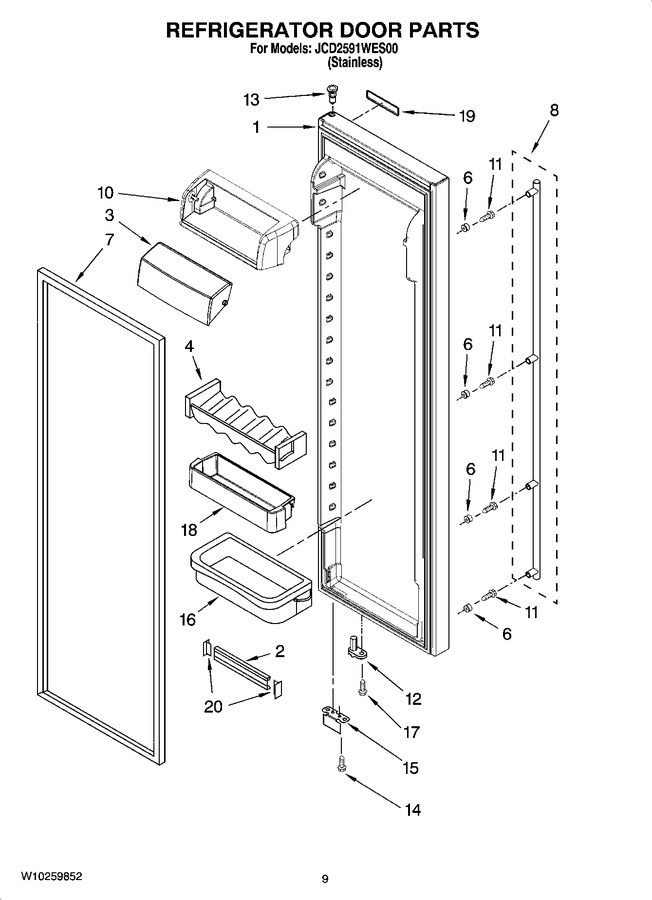

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10173220SA		Refrigerator Door (includes 7) (stainless)		Appelez-nous	-
2	2203087K		Trim, Shelf		Appelez-nous	-
3	2255421		Dairy Door				$ 34.76
4	2223883		Caddy, Can				$ 34.98
6	12945201		Stud, Handle				$ 35.20
7	2326341		Door Gasket, Magnetic (apollo Grey)		Appelez-nous	-
8	12850925		Handle Assy (stainless)		Appelez-nous	-
10	2223879		Dairy Compartment				$ 40.49
11	W10160454		Screw				$ 14.42
12	2307048		Door Closer, Upper Cam		Appelez-nous	-
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2306940		Bracket, Door Stop (chrome)				$ 101.93
16	WP2223860		Door Bin (3)   (Replaces: 2223860)			Immediately	$ 84.05
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
18	WP2224173		Door Bin, Shallow   (Replaces: 2224173)				$ 91.69
19	12848704		Nameplate				$ 60.12
20	WP2156006		Plug, Trim   (Replaces: 2156006K)			Immediately	$ 12.79
