Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10236446 Freezer Door (includes 8 And Dispenser Front Parts) (stainless) Appelez-nous -
2 12850924 Handle Assy (stainless) Appelez-nous -
3 12945201 Stud, Handle Special Order $ 35.20

4 W10160454 Screw Special Order $ 13.73

5 WP3400012 Screw   (Replaces: 3400012) Special Order $ 7.82

7 2223559K Shelf Bin (3) Appelez-nous -
8 2326340 Door Gasket, Magnetic (apollo Grey) Appelez-nous -
9 2310226 Wire Assy, Door Appelez-nous -
10 WP2182181 Thimble, Top   (Replaces: 2308091) Special Order $ 7.76

11 2307050 Door Closer, (upper Cam) Special Order $ 39.47

12 WP489483 Screw   (Replaces: 489420) Special Order $ 10.87

13 2306940 Bracket, Door Stop (chrome) Special Order $ 97.08


    View Diagram in Separate Window     Print Icon   Print Part List

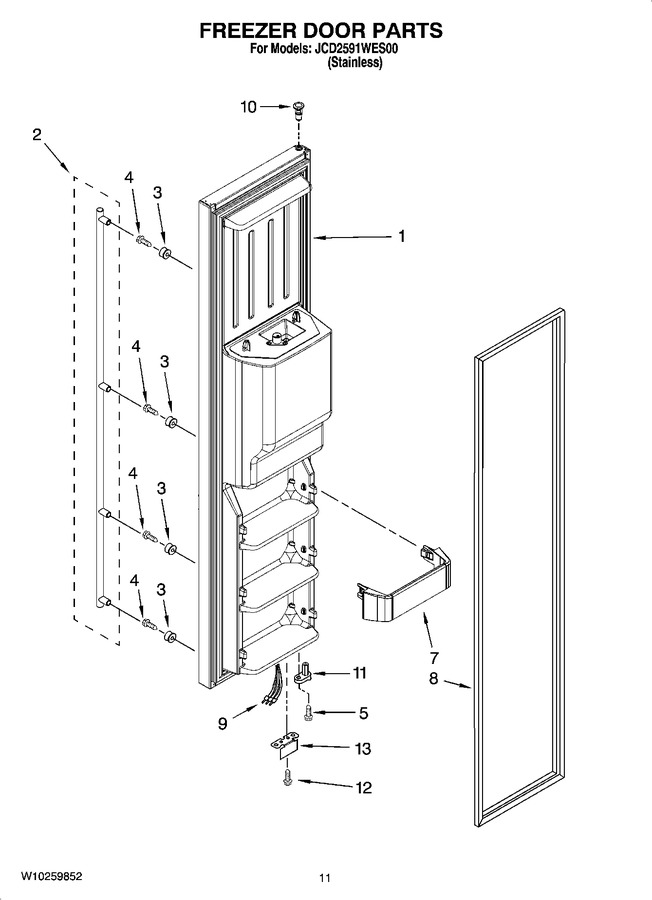

Diagram for JCD2591WES00
