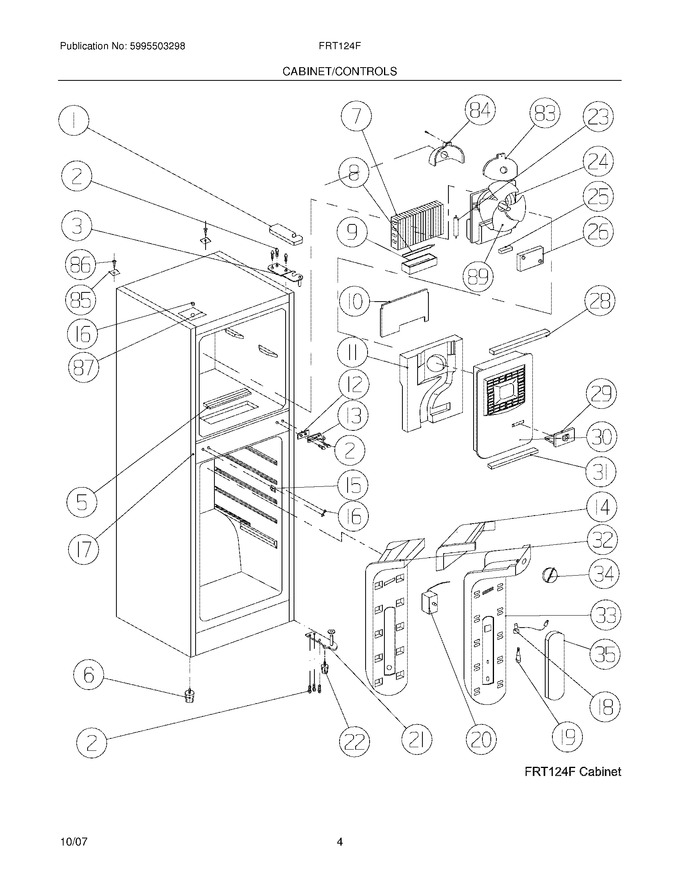

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304460239		Cover-upper Hinge		Appelez-nous	-
2	5304460240		Screw-flange		Appelez-nous	-
3	5304460241		Hinge-upper		Appelez-nous	-
5	5304460339		Deflector-air				$ 22.40
6	5304446992		Foot-cabinet,long				$ 14.96
7	5304460338		Evaporator				$ 194.32
8	5304460340		Heater-defrost				$ 129.89
9	5304460341		Trough-water		Appelez-nous	-
10	5304460342		Reflector-foil				$ 10.41
11	5304460343		Channel-air Upper				$ 51.03
12	5304460344		Shim-ctr Hinge		Appelez-nous	-
13	5304460345		Hinge-center		Appelez-nous	-
14	5304460346		Channel-air Lower		Appelez-nous	-
15	5304460347		Switch-light				$ 35.67
16	5304460348		Cover-plug Button		Appelez-nous	-
17	5304460349		Cap-screw		Appelez-nous	-
18	5304460350		Socket-light		Appelez-nous	-
19	5304446991		Bulb/lamp				$ 17.33
20	5304460351		Control-temp				$ 100.60
21	5304460352		Hinge-lower		Appelez-nous	-
22	5304460353		Short Front Leg		Appelez-nous	-
23	5304460354		Thermostat				$ 41.79
24	5304460355		Motor-evap				$ 307.81
25	5304460356		Thermostat-defrost				$ 158.76
26	5304460357		Cover-wire		Appelez-nous	-
28	5304460358		Seal				$ 7.02
29	5304460359		Damper-fan Cover		Appelez-nous	-
30	5304460360		Cover-fan				$ 84.04
31	5304460361		Seal		Appelez-nous	-
32	5304460362		Deflector-air, Refr		Appelez-nous	-
33	5304460363		Box-control, Refr		Appelez-nous	-
34	5304460364		Knob-temp Control		Appelez-nous	-
35	5304460365		Cover-light		Appelez-nous	-
83	5304460366		Cover-fan Motor, Front		Appelez-nous	-
84	5304460367		Cover-fan Motor, Back				$ 19.34
85	5304460368		Cover-rear Corner		Appelez-nous	-
86	5304460369		Screw		Appelez-nous	-
87	5304460370		Cap-screw		Appelez-nous	-
89	5304460391		Blade-fan				$ 32.28
