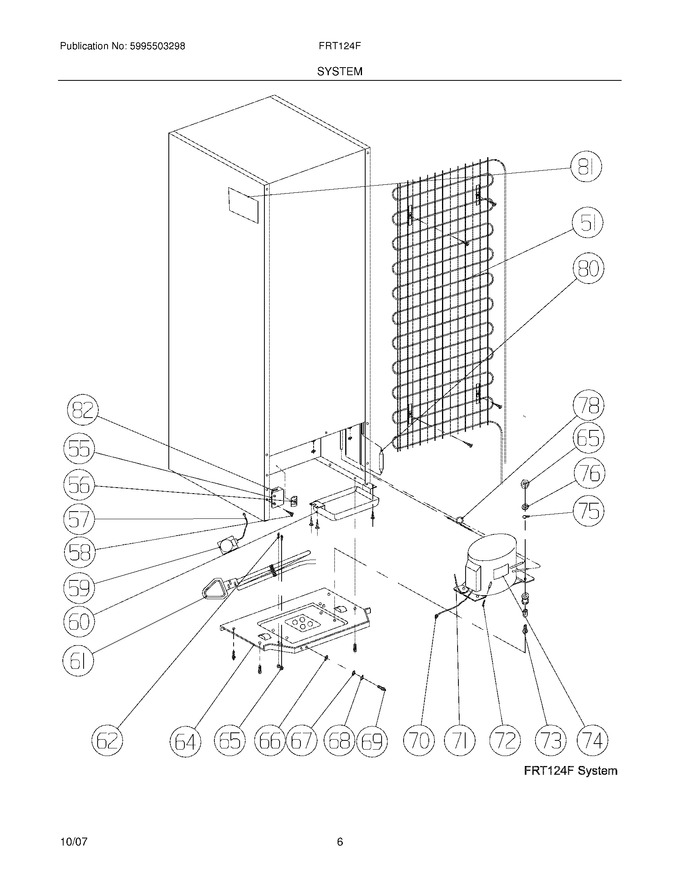

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
55	5304460389		Box-timer				$ 44.65
56	5304460390		Cover		Appelez-nous	-
57	5304460430		Harness-wiring,machine Compt		Appelez-nous	-
58	5304460395		Screw		Appelez-nous	-
59	5304460394		Timer				$ 239.87
60	5304460396		Pan-drain				$ 50.08
62	5304460402		Screw		Appelez-nous	-
64	5304460403		Base-compressor		Appelez-nous	-
65	5304460404		Screw		Appelez-nous	-
66	5304460405		Washer		Appelez-nous	-
67	5304460406		Pad		Appelez-nous	-
68	5304460407		Screw		Appelez-nous	-
69	5304460408		Screw		Appelez-nous	-
70	5304460409		Wire-compressor Grounding		Appelez-nous	-
71	5304460410		Harness-wiring,compressor		Appelez-nous	-
73	5304460398		Screw		Appelez-nous	-
74	5304460881		Compressor		Appelez-nous	-
75	5304460411		Pad		Appelez-nous	-
76	5304460412		Washer		Appelez-nous	-
78	5304460401		Tube-connector				$ 32.28
80	5304460392		Filter-dryer				$ 35.12
81	5304460882		Label-wiring Diagram		Appelez-nous	-
82	5304460393		Box-timer				$ 22.55
F51	5304460435		Condenser		Appelez-nous	-
F61	5304460397		Cord-service				$ 59.61
F72	5304460399		Tube-process		Appelez-nous	-
