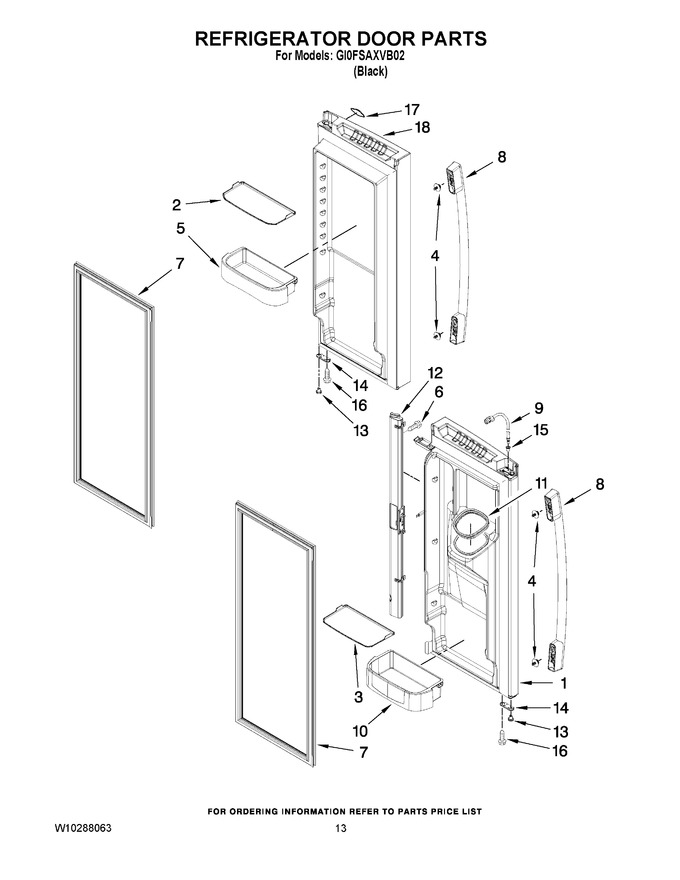

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12978068BQ | Door, Left Black |
|
- | |||||
| 2 | W10450032 | Gripper, Medium (Replaces: W10138063) |
|
$ 100.87 | |||||
| 3 | W10450033 | Gripper, Gallon (Replaces: W10138061) |
|
$ 83.12 | |||||
| 4 | WP12992902 | Screw, Handle (shoulder) (Replaces: 12992902) |
|
$ 11.07 | |||||
| 5 | WPW10451500 | Bin, Shelf (Replaces: W10134728) |
|
$ 102.54 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 7 | W11378944 | Gasket, Door (black) (Replaces: W10163898) |
|
Immediately | $ 187.59 | ||||
| 8 | W11351146 | Handle, Door (black) (Replaces: W10222985) |
|
$ 180.08 | |||||
| 9 | 12962106 | Waterline, Door |
|
$ 133.09 | |||||
| 10 | WPW10451501 | Bucket, Gallon (Replaces: W10134727) |
|
Immediately | $ 104.23 | ||||
| 11 | WPW10287601 | Seal, Ice Chute (Replaces: 12999902) |
|
Immediately | $ 31.20 | ||||
| 12 | WPW10151713 | Mullion, Door (black) (Replaces: 12722813B) |
|
$ 325.79 | |||||
| 13 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 14 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.05 | ||||
| 15 | 12996601 | Clip, Bushing Wire (left Door) |
|
$ 10.05 | |||||
| 16 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.00 | |||||
| 17 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 18 | W10160123 | Door, Right (black) |
|
- |
