SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts

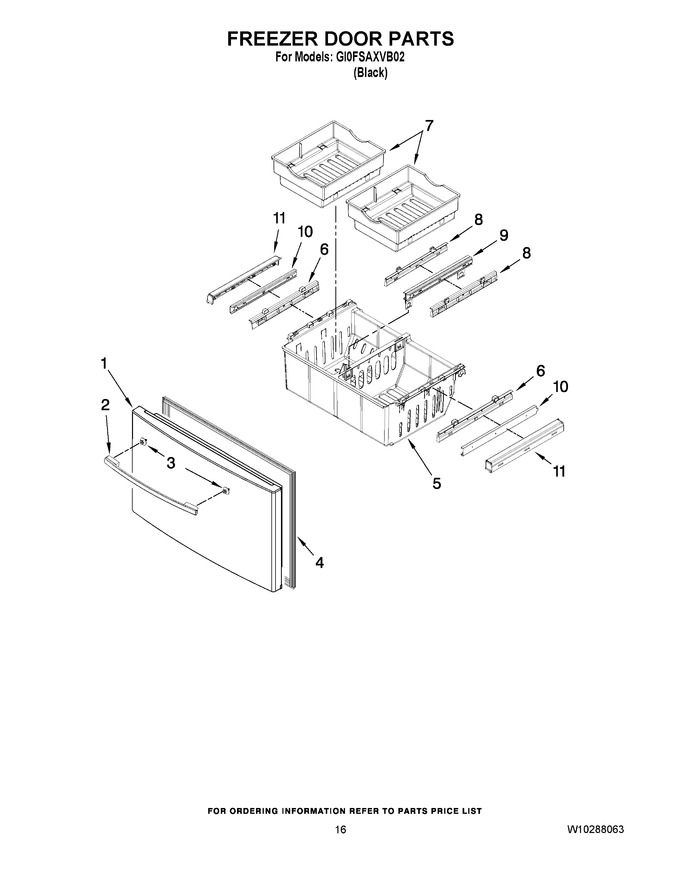

09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12978070BQ		Freezer Door (black)		Appelez-nous	-
2	WPW10223023K		Handle, Door (black)   (Replaces: W10223023)				$ 191.10
3	WP12992902		Screw, Handle   (Replaces: 12992902)				$ 11.07
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 343.70
5	13002801SP		Bin, Lower		Appelez-nous	-
6	W10187469		Adapter, Bin (outer)   (Replaces: 13002601SP)				$ 87.89
7	W10184227		Bin, Upper   (Replaces: 13002402)			Immediately	$ 116.30
8	W10184223		Adapter, Bin (center)   (Replaces: 13002604SP)				$ 92.51
9	W10235358		Bracket/glide Assembly   (Replaces: 12969702)				$ 302.94
10	WPW10235368		Glide, Upper   (Replaces: 12925102)				$ 319.83
11	W10826790		Retainer, Glide (left)   (Replaces: 13002701SP)				$ 59.50
11	W10826791		Retainer, Glide (right)   (Replaces: 13002702SP)				$ 59.50

    View Diagram in Separate Window       Print Part List
