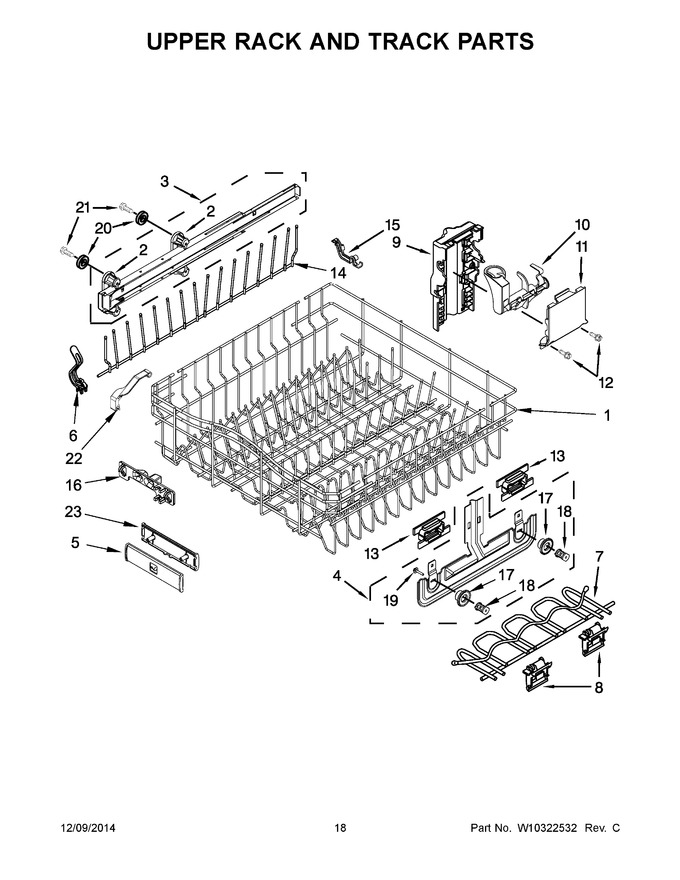

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661174		Dishrack, Upper   (Replaces: W10194861)				$ 197.59
2	W10077876		Mount, Track				$ 33.42
3	WPW10247512		Track Rack (left Hand)   (Replaces: W10247512)				$ 277.64
4	W10728567		Adjuster Assembly   (Replaces: 8268653)				$ 194.00
5	W10587967		Handle, Dishrack (front)   (Replaces: W10056297)		Appelez-nous	-
6	W10238406		Clip, No Flip				$ 9.20
7	W10208697		Cupshelf		Appelez-nous	-
8	W10238407		Mount, Cupshelf				$ 7.82
9	W10238416		Adjuster, Housing		Appelez-nous	-
10	W10712394		Adjuster, Actuator (left Hand)   (Replaces: W10238418)			Immediately	$ 71.15
11	W10728561		Cover, Adjuster   (Replaces: W10238419)				$ 20.53
12	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
13	W10728566		Positioner, Arm   (Replaces: W10238420)			Immediately	$ 8.22
14	W10194862		Tine, Fold Down				$ 87.03
15	W10238404		Clip, Pivot				$ 7.80
16	W10238405		Positioner, Dual				$ 99.83
17	WP8270138		Wheel, Rack   (Replaces: 8270138)			Immediately	$ 11.88
18	WP8268703		Axle, Adjuster   (Replaces: 8268703)			Immediately	$ 11.28
19	8281156		Screw				$ 5.83
20	WP9743002		Gasket, Mounting Bracket   (Replaces: 9743002)			Immediately	$ 10.04
21	WPW10348407		Screw   (Replaces: W10348407)				$ 8.06
22	WPW10267076		Clip, Dispenser Guard   (Replaces: W10267076)				$ 31.56
23	W10056298		Handle, Dishrack (rear)		Appelez-nous	-
10A	W10712394		Adjuster, Actuator (right Hand)   (Replaces: W10238417)			Immediately	$ 71.15
3A	WPW10247511		Track Rack (right Hand)   (Replaces: W10247511)				$ 303.38
