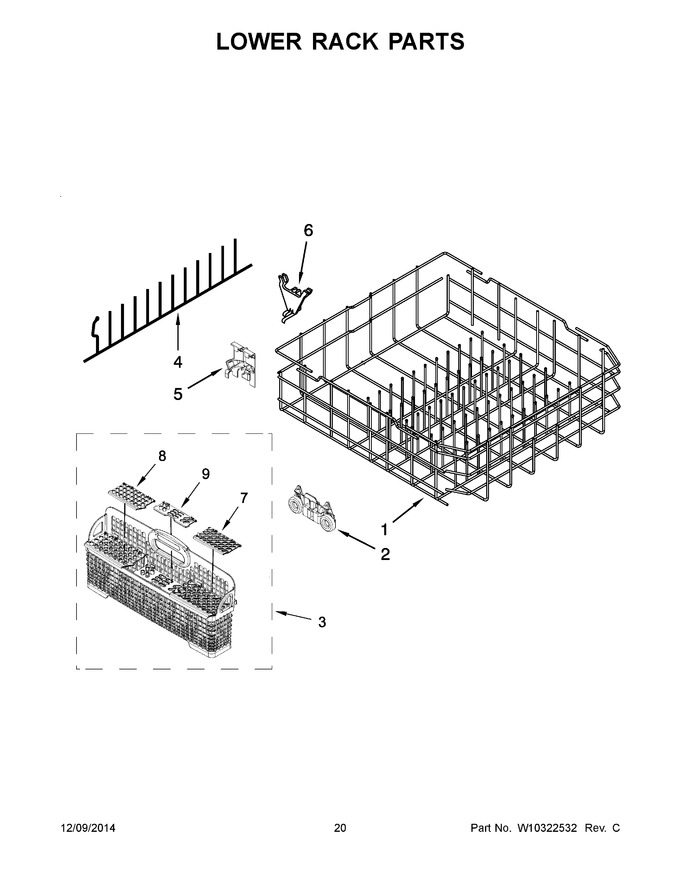

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10315891		Dishrack, Lower   (Replaces: W10056350)				$ 228.43
2	W10261336		Wheel & Transport Assembly				$ 39.02
3	WPW10311153		Basket, Silverware   (Replaces: W10311153)				$ 175.23
4	WPW10238412		Pivot, Tine Row   (Replaces: W10238412)				$ 14.99
5	WPW10238411		Retainer, Tinerow   (Replaces: W10238411)				$ 8.17
6	WPW10056351		Tinerow   (Replaces: W10056351)				$ 87.03
7	W10311149		Lid, Basket (right)		Appelez-nous	-
8	W10311150		Lid, Basket (left)		Appelez-nous	-
9	W10311151		Lid, Basket (center)		Appelez-nous	-
