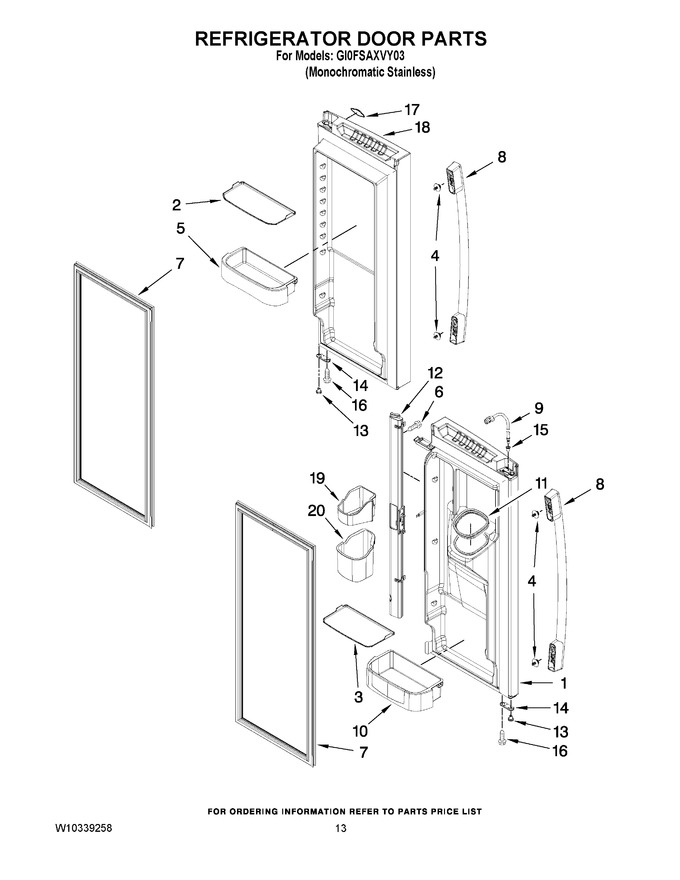

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107808SQ		Door, Left (stainless)		Appelez-nous	-
2	W10450032		Gripper, Medium   (Replaces: W10138063)				$ 105.91
3	W10450033		Gripper, Gallon   (Replaces: W10138061)				$ 87.28
4	WP12992902		Screw, Handle (shoulder)   (Replaces: 12992902)				$ 11.91
5	WPW10451500		Bin, Shelf   (Replaces: W10134728)				$ 107.67
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	W10830055		Gasket, Door (apollo Grey)   (Replaces: W10163991)			Immediately	$ 229.10
8	W11351147		Handle, Door (stainless)   (Replaces: W10223019)				$ 198.22
9	12962106		Waterline, Door				$ 133.09
10	WPW10451501		Bucket, Gallon   (Replaces: W10134727)			Immediately	$ 109.44
11	WPW10287601		Seal, Ice Chute   (Replaces: 12665101SP)			Immediately	$ 32.76
12	WP12722813AP		Mullion, Door (apollo Grey)   (Replaces: 12722813AP)				$ 340.89
13	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
14	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 15.46
15	12996601		Clip, Bushing Wire (left Door)				$ 10.05
16	WP98165		Screw   (Replaces: 67006473)				$ 8.57
17	2220214		Nameplate				$ 32.43
18	13107811SQ		Door, Right (stainless)		Appelez-nous	-
19	WP12977402		Bucket, Upper   (Replaces: 12977402)				$ 79.60
20	WP12977502		Bucket, Lower   (Replaces: 12977502)				$ 84.55

    View Diagram in Separate Window       Print Part List
