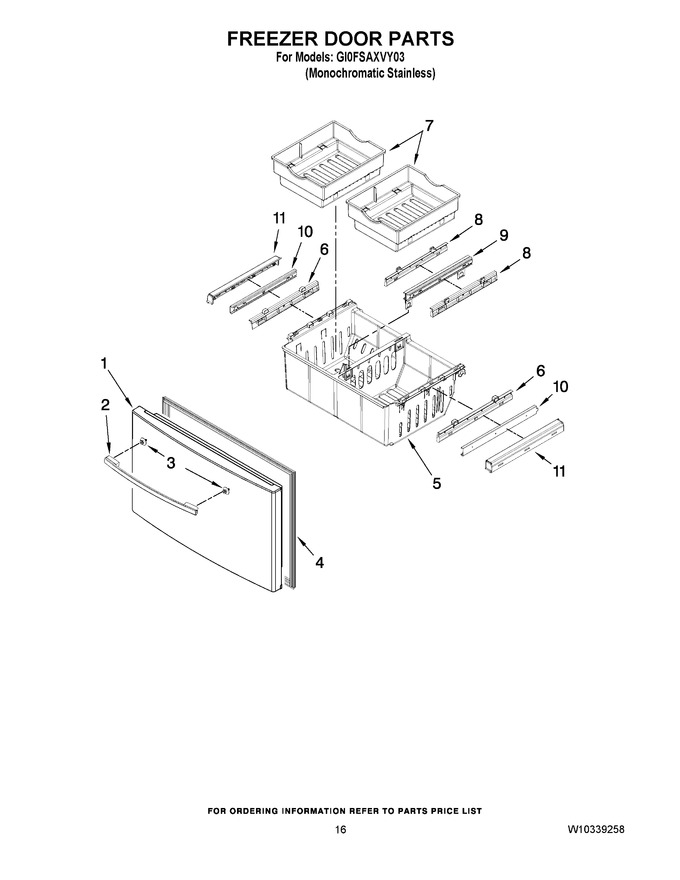

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977846SQ | Freezer Door (stainless) |
|
- | |||||
| 2 | W10223025 | Handle, Door (stainless) |
|
- | |||||
| 3 | WP12992902 | Screw, Handle (Replaces: 12992902) |
|
$ 11.91 | |||||
| 4 | WPW10714545 | Gasket, Door (apollo Grey) (Replaces: W10164045) |
|
$ 323.60 | |||||
| 5 | 13002801SP | Bin, Lower |
|
- | |||||
| 6 | W10187469 | Adapter, Bin (outer) (Replaces: 13002603SP) |
|
$ 92.28 | |||||
| 7 | W10184227 | Bin, Upper (Replaces: 13002402) |
|
Immediately | $ 122.12 | ||||
| 8 | W10184223 | Adapter, Bin (center) (Replaces: 13002604SP) |
|
$ 97.14 | |||||
| 9 | W10235358 | Bracket/glide Assembly |
|
$ 318.09 | |||||
| 10 | WPW10235368 | Glide, Upper (Replaces: W10235368) |
|
$ 335.82 | |||||
| 11 | W10826790 | Retainer, Glide (left) (Replaces: 13002701SP) |
|
$ 62.48 | |||||
| 11 | W10826791 | Retainer, Glide (right) (Replaces: 13002702SP) |
|
$ 62.48 |
