SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

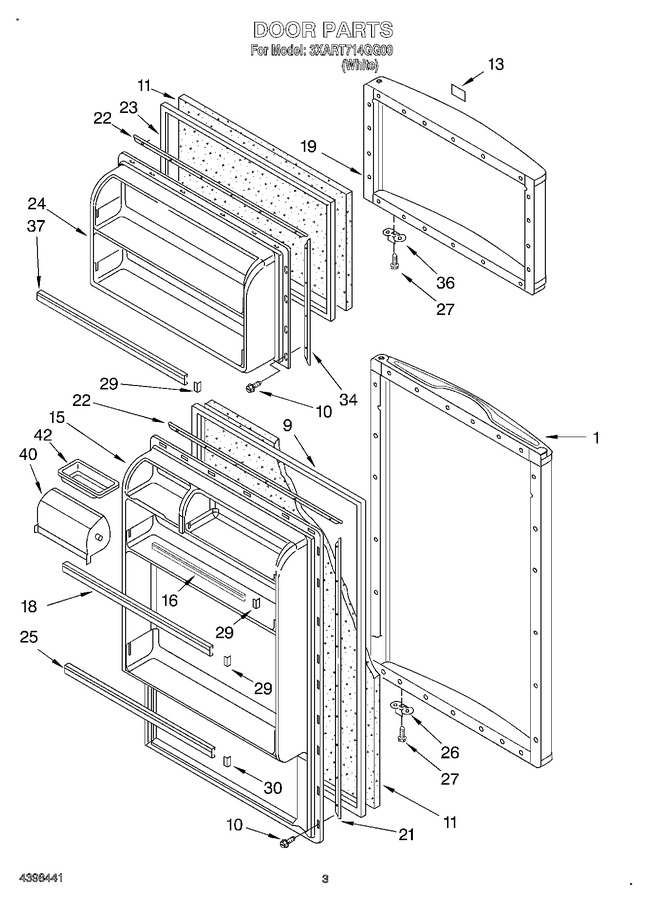

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195741		Refrigerator Door Panel (also Order Item 11)		Appelez-nous	-
9	2188448A		Door Gasket, Magnetic   (Replaces: 2191888)				$ 154.65
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
13	2175383		Nameplate		Appelez-nous	-
15	2173725		Panel, Interior Door (refrigerator)		Appelez-nous	-
16	WP2163629		Trim, Door Shelf   (Replaces: 2163630)			Immediately	$ 63.40
18	WP2163629		Trim, Door   (Replaces: 2163631)			Immediately	$ 63.40
19	2192254		Freezer Door Panel (also Order Item 11)		Appelez-nous	-
21	1122551		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic   (Replaces: 2191889)				$ 114.77
24	9790358		Interior Door Panel (freezer)		Appelez-nous	-
25	2163628		Trim, Door Shelf		Appelez-nous	-
26	2195787		Stop, Door		Appelez-nous	-
27	3935634		Screw		Appelez-nous	-
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
34	1122553		Retainer, Gasket		Appelez-nous	-
36	2195786		Stop, Door		Appelez-nous	-
37	WP2201061		Trim, Door (2)   (Replaces: 2195873)				$ 118.40
40	2207939		Door Compartment		Appelez-nous	-
42	2165792		Tray, Butter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
