SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

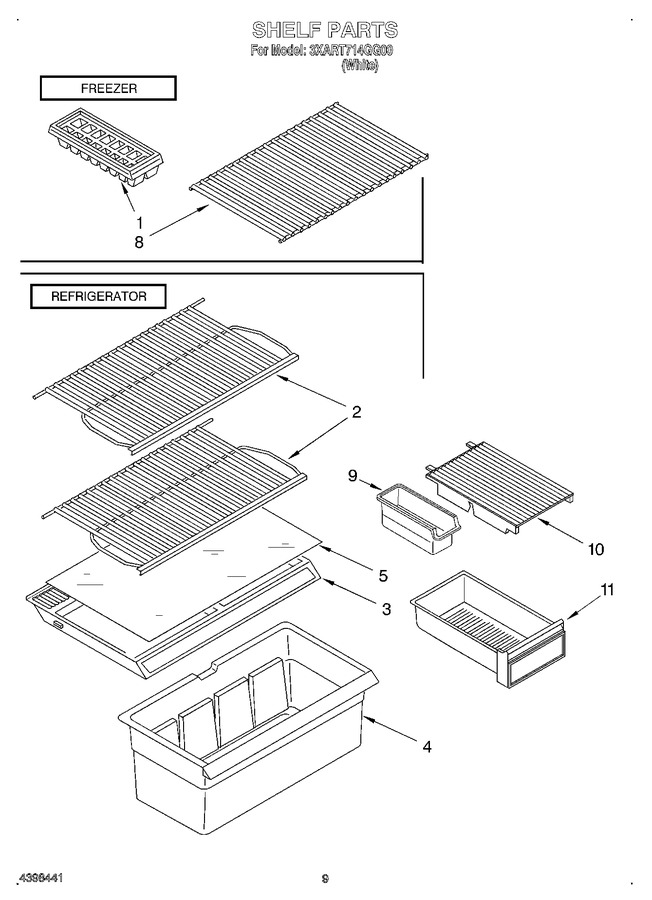

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Tray, Ice (2)   (Replaces: 2201793)			Immediately	$ 47.84
2	WP2192515		Shelf (3)   (Replaces: 2192515)				$ 128.45
3	WP2192250		Cover, Crisper   (Replaces: 2192250)			Immediately	$ 193.23
4	WP2192009		Pan, Crisper   (Replaces: 2192009)			Immediately	$ 135.81
5	WP2210047		Glass Cover   (Replaces: 2194439)			Immediately	$ 217.32
8	WP2192514		Shelf   (Replaces: 2192514)			Immediately	$ 96.04
9	WP982704		Container   (Replaces: 1116917)				$ 32.55
10	9790379		Cover, Meat Pan				$ 77.22
11	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
11	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
11	1117510		Torx Key				$ 5.84
11	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
11	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
11	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
11	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
11	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
11	833938		Kit, Terminal Connector				$ 8.47
11	WPW10190943		3eckmf-87   (Replaces: 1129317)				$ 397.04
11	2183273		Pan, Meat				$ 61.29
11	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
11	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
11	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
11	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
11	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
11	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
11	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
11	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
11	350942		Primer White (13 Oz. Spray Can)				$ 94.14
11	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
11	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
11	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
11	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
11	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
11	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
11	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14

    View Diagram in Separate Window       Print Part List
