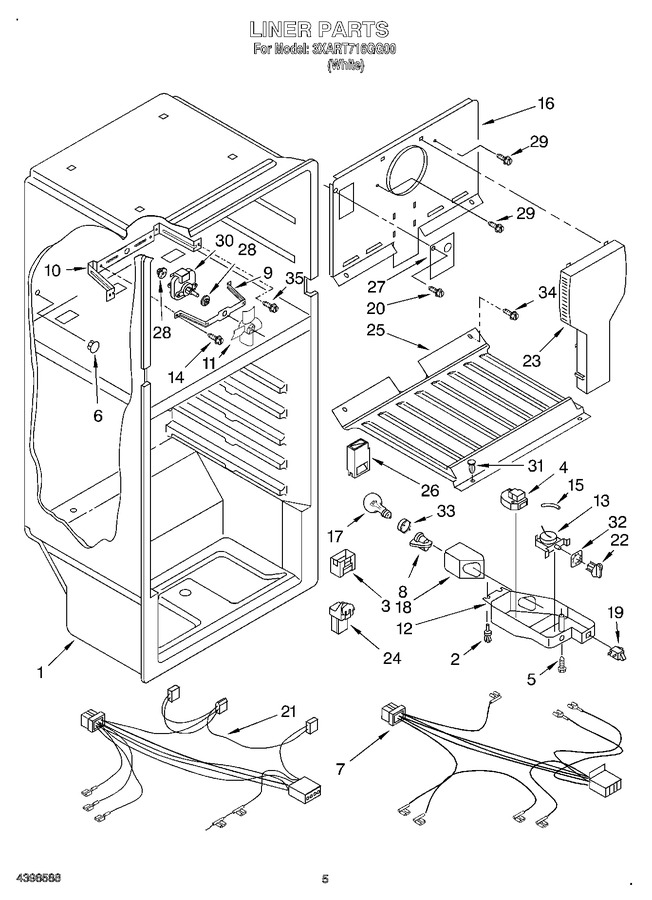

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 939962 | Rivet-plastic |
|
$ 11.83 | |||||
| 3 | 2183061 | Cover, Air Diffuser |
|
$ 36.62 | |||||
| 4 | WP2166867 | Timer, Defrost (Replaces: 2162054) |
|
$ 178.79 | |||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.95 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 7.65 | |||||
| 7 | 2176927 | Wire Assembly (control Box) |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 9 | WPW10180172 | Fan Support Bracket (Replaces: 2197404) |
|
$ 40.27 | |||||
| 10 | 2197405 | Fan Mounting Bracket |
|
$ 30.23 | |||||
| 11 | 2169141 | Fan Blade |
|
- | |||||
| 12 | 2215213 | Control Box (Replaces: 2202020) |
|
$ 110.52 | |||||
| 13 | WPW10511937 | Thermostat (Replaces: 2201754) |
|
Immediately | $ 180.41 | ||||
| 14 | 303776 | Screw (Replaces: 3392891) |
|
- | |||||
| 15 | WP2196003 | Thermostat Tube Barrier (Replaces: 1118680) |
|
$ 7.95 | |||||
| 16 | 2201205 | Cover, Evaporator |
|
- | |||||
| 17 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 11.75 | ||||
| 18 | W11034434 | Light Shield (Replaces: 9791702) |
|
Immediately | $ 103.73 | ||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 20 | WP489442 | Screw (Replaces: 489438) |
|
Immediately | $ 10.94 | ||||
| 21 | 2192097 | Wiring, Freezer |
|
- | |||||
| 22 | WP2202885 | Control Knob (Replaces: 2202885) |
|
$ 26.38 | |||||
| 23 | 2174502 | Air Tower |
|
- | |||||
| 24 | 2207629 | Hood And Foil Assembly |
|
- | |||||
| 25 | 2174798 | Freezer Floor |
|
$ 70.51 | |||||
| 26 | 2197030 | Air Diffuser |
|
- | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 2197434) |
|
$ 44.97 | |||||
| 28 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 43.97 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 30 | WP2201215 | Evaporator Fan Motor (Replaces: 2201215) |
|
$ 213.10 | |||||
| 31 | 489115 | Fastener-snap In |
|
$ 5.51 | |||||
| 32 | 2165773 | Retainer |
|
- | |||||
| 33 | WP2175210 | Shroud (Replaces: 2175210) |
|
$ 82.61 | |||||
| 34 | WP489474 | Screw (Replaces: 489474) |
|
Immediately | $ 7.97 | ||||
| 35 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 |
