SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

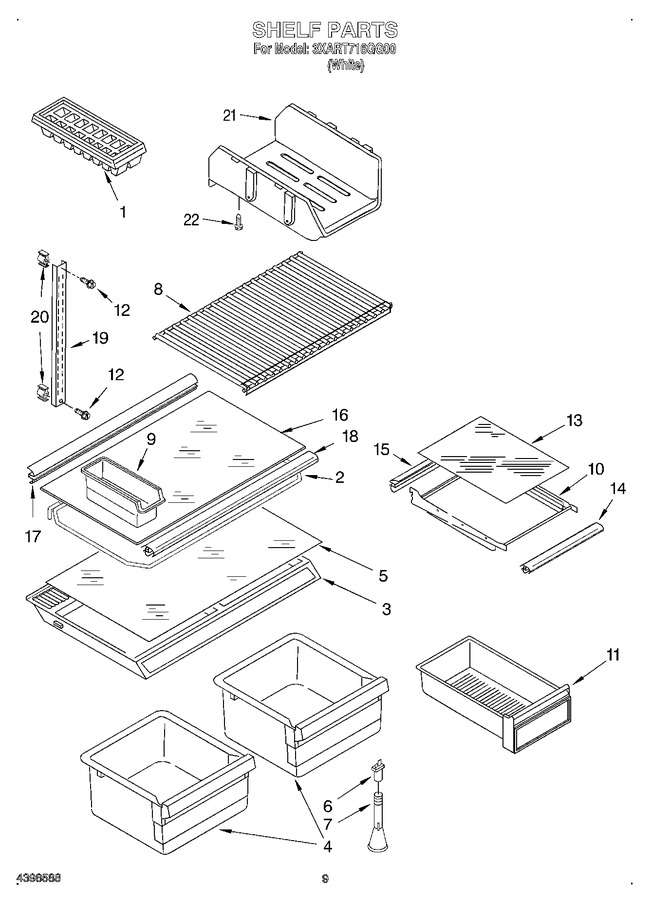

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Tray, Ice (2)   (Replaces: 2201793)			Immediately	$ 47.84
2	2197227		Frame, Shelf		Appelez-nous	-
3	WP2192250		Cover, Crisper   (Replaces: 2192250)			Immediately	$ 193.23
4	2207934		Pan, Crisper		Appelez-nous	-
5	WP2210047		Glass Cover   (Replaces: 2194439)			Immediately	$ 217.32
6	9791824		Support, Crisper				$ 44.69
7	836410		Post, Crisper				$ 5.84
8	2197240		Shelf, Freezer		Appelez-nous	-
9	WP982704		Container   (Replaces: 1116917)				$ 32.55
10	2197351		Shelf, Meat Pan		Appelez-nous	-
11	2207935		Meat Pan		Appelez-nous	-
12	W11544659		Screw   (Replaces: 489415)				$ 14.35
13	2197253		Glass, Shelfh.w.		Appelez-nous	-
14	2197462		Trim, Front H.w.		Appelez-nous	-
15	2197463		Trim, Rear H.w.		Appelez-nous	-
16	2197254		Glass, Shelff.w.		Appelez-nous	-
17	2197458		Trim, Rearf.w.		Appelez-nous	-
18	2197459		Trim, Frontf.w.		Appelez-nous	-
19	2197146		Ladder, Shelf		Appelez-nous	-
20	2189314		Support, Screw		Appelez-nous	-
21	2183995		Shelf, Ice Tray		Appelez-nous	-
22	WPW10190943		3eckmf-87   (Replaces: 1129317)				$ 397.04
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
22	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
22	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
22	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
22	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
22	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
22	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
22	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
22	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
22	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
22	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
22	833938		Kit, Terminal Connector				$ 8.47
22	1117510		Torx Key				$ 5.84
22	WP489442		Screw   (Replaces: 489438)			Immediately	$ 11.49
22	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
22	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
22	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
22	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
22	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
22	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	350942		Primer White (13 Oz. Spray Can)				$ 94.14

    View Diagram in Separate Window       Print Part List
