SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner, Optional


04 - Unit


05 - Shelf

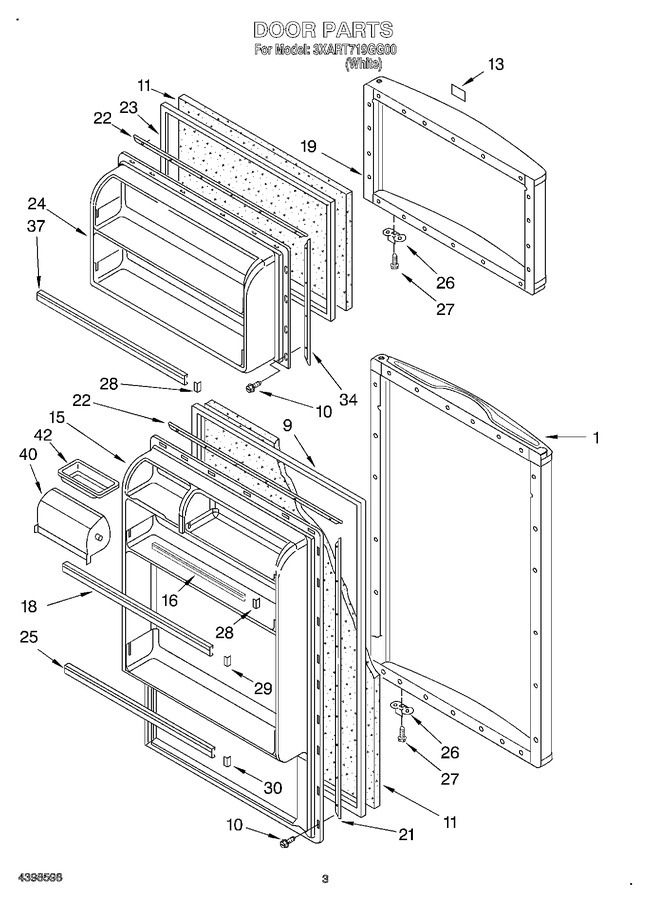

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197333		Refrigerator Door Panel (also Order Item 11)		Appelez-nous	-
9	WP2319264T		Door Gasket, Magnetic   (Replaces: 2197171)			Immediately	$ 192.71
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
13	2175383		Nameplate		Appelez-nous	-
15	2197158		Interior Door Panel (refrigerator)		Appelez-nous	-
16	WP2163629		Trim, Door Shelf   (Replaces: 2163630)			Immediately	$ 63.40
18	2163628		Trim, Door		Appelez-nous	-
19	2197334		Freezer Door Panel (also Order Item 11)		Appelez-nous	-
21	2197082		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic   (Replaces: 2191889)			Immediately	$ 114.77
24	2197159		Interior Door Panel (freezer)		Appelez-nous	-
25	WP2197356		Trim, Door Shelf   (Replaces: 2197356)				$ 137.91
26	W11745278		Stop, Door   (Replaces: 2189202)			Immediately	$ 13.37
27	3935634		Screw		Appelez-nous	-
28	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
29	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
30	2159365		Plug-trim				$ 6.33
34	1122553		Retainer, Gasket		Appelez-nous	-
37	WP2201061		Trim, Door (2)   (Replaces: 2195873)				$ 118.40
40	2207939		Door Compartment		Appelez-nous	-
42	2165792		Tray, Butter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
