SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner, Optional


04 - Unit


05 - Shelf

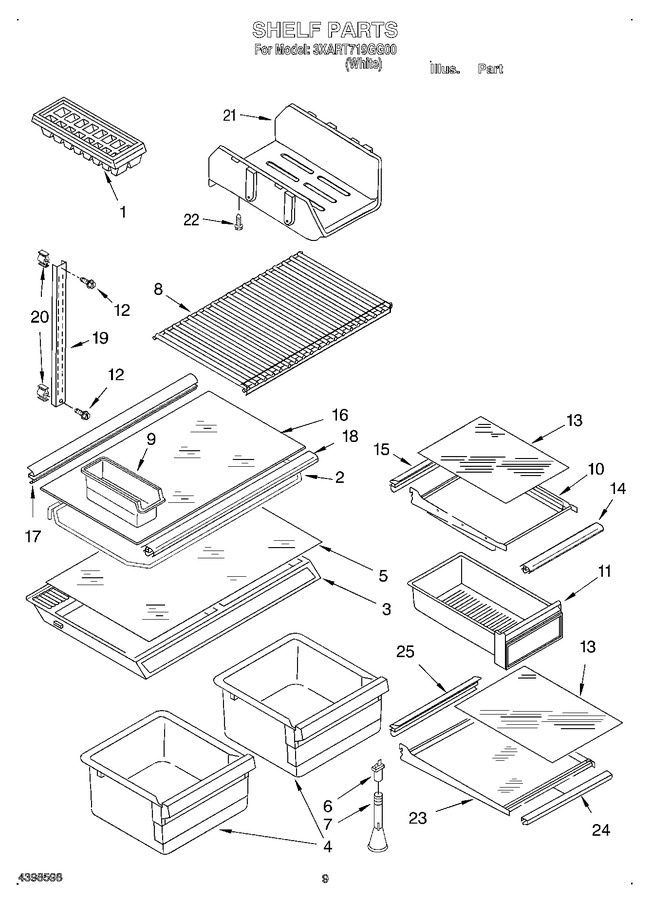

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Tray, Ice (2)   (Replaces: 2201793)			Immediately	$ 45.56
2	2197227		Frame, Shelf		Appelez-nous	-
3	WP2192250		Cover, Crisper   (Replaces: 2192250)			Immediately	$ 184.03
4	2207934		Pan, Crisper		Appelez-nous	-
5	WP2210047		Glass Cover   (Replaces: 2194439)			Immediately	$ 206.97
6	9791824		Support, Crisper				$ 44.69
7	836410		Post, Crisper				$ 5.84
8	2197240		Shelf, Freezer		Appelez-nous	-
9	WP982704		Container   (Replaces: 1116917)				$ 31.00
10	2197351		Shelf, Meat Pan		Appelez-nous	-
11	2207935		Meat Pan		Appelez-nous	-
12	W11544659		Screw   (Replaces: 489415)				$ 13.67
13	2197253		Glass, Shelfh.w.		Appelez-nous	-
14	2197462		Trim, Front H.w.		Appelez-nous	-
15	2197463		Trim, Rear H.w.		Appelez-nous	-
16	2197254		Glass, Shelff.w.		Appelez-nous	-
17	2197458		Trim, Rearf.w.		Appelez-nous	-
18	2197459		Trim, Frontf.w.		Appelez-nous	-
19	2197146		Ladder, Shelf		Appelez-nous	-
20	2189314		Support, Screw		Appelez-nous	-
21	2183995		Shelf, Ice Tray		Appelez-nous	-
22	WP489442		Screw   (Replaces: 489438)			Immediately	$ 10.94
23	2197241		Frame, Shelf H.w.		Appelez-nous	-
24	2197461		Trim, Shelf H.w.		Appelez-nous	-
25	2197460		Trim, Shelf H.w.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
