SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

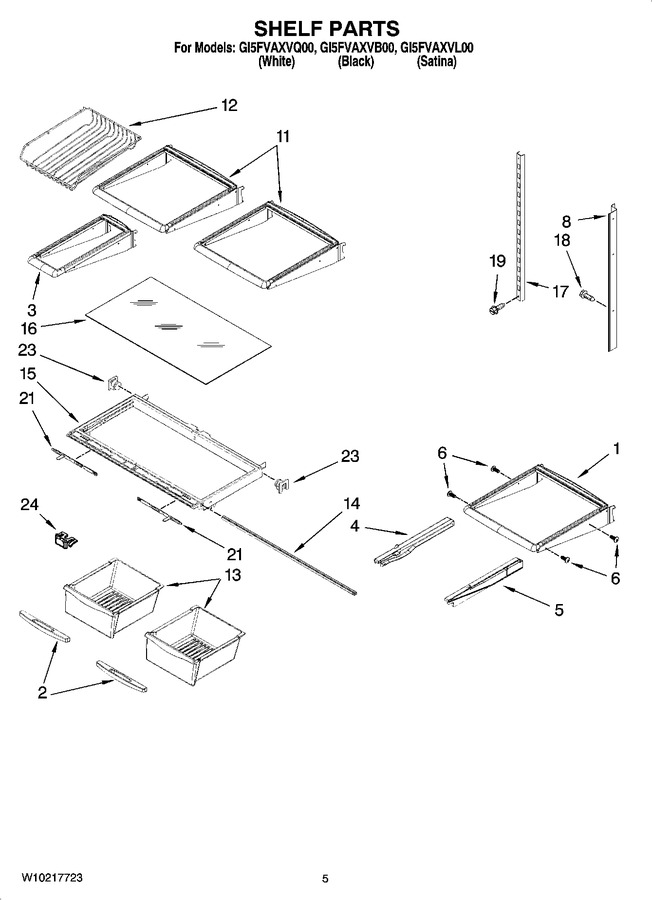

03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12883508SP		Shelf (2)   (Replaces: 12883508SP)				$ 305.36
2	WPW10297814		Handle, Crisper Pan (2)   (Replaces: W10141531)				$ 156.85
3	W10187852		Shelf, Mini (stationary)		Appelez-nous	-
4	WPW10194031		Glide, Snack Pan Left Hand   (Replaces: W10194031)				$ 125.17
5	WPW10194032		Glide, Snack Pan Right Hand   (Replaces: W10194032)				$ 121.61
6	W11233072		Track, Pantry   (Replaces: 67006626)			Immediately	$ 14.02
8	W10251965		Ladder, Side   (Replaces: W10165909)				$ 29.60
11	W11402525		Shelf, Glide (1)   (Replaces: 12883507)				$ 223.28
12	67004585		Rack, Bottle		Appelez-nous	-
13	WPW10297814		Pan, Crisper (2)   (Replaces: W10141529)				$ 156.85
14	W10490807		Brace, Crisper Cover   (Replaces: W10119258)				$ 96.59
15	W10200927		Frame, Crisper				$ 95.48
16	WP12204826		Glass, Crisper Cover   (Replaces: 12204826)				$ 241.98
17	67006358		Ladder, Center		Appelez-nous	-
18	67006425		Screw   (Replaces: 67006400)			Immediately	$ 6.95
19	W10709795		Screw (2)   (Replaces: 67006360)				$ 13.13
21	W10141530		Slide, Humidity Control		Appelez-nous	-
23	WP12603701		Supports, Crisper Frame   (Replaces: 12603701)				$ 10.31
24	2223309		Knob, Humidity Control				$ 34.60
