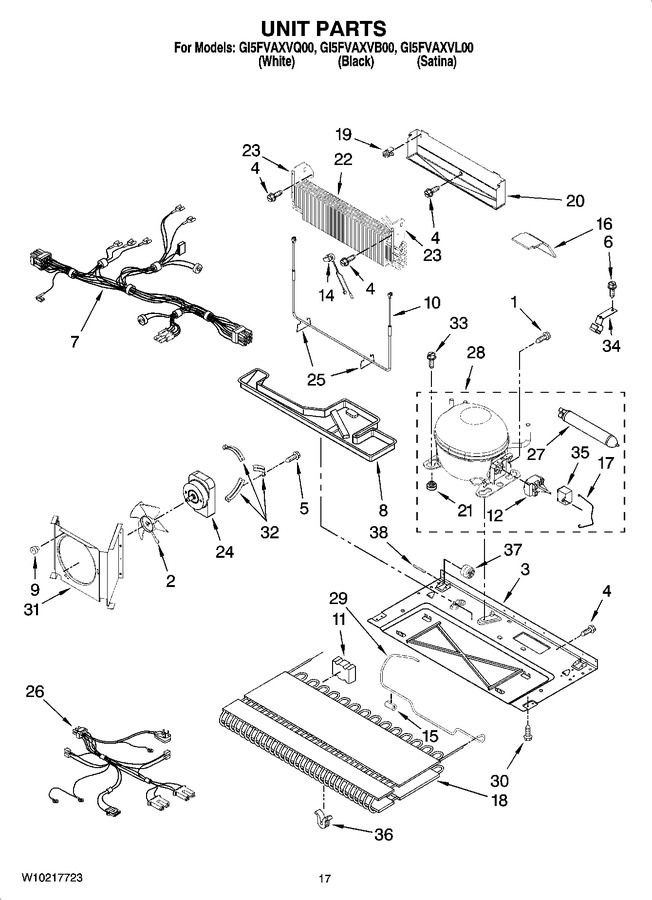

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw (Replaces: 67006433) |
|
$ 7.32 | |||||
| 2 | W10156818 | Blade, Fan (Replaces: W10162928) |
|
Immediately | $ 62.11 | ||||
| 3 | 67005889 | Basepan |
|
- | |||||
| 4 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 5 | WP67004954 | Screw (3) (Replaces: 67004954) |
|
$ 8.18 | |||||
| 6 | WP33001882 | Screw, Clip (Replaces: 67006737) |
|
$ 83.71 | |||||
| 7 | W10850438 | Harness, Evap Heater (Replaces: W10119239) |
|
Immediately | $ 306.39 | ||||
| 8 | WP12579803 | Pan, Drain (Replaces: 67007175) |
|
$ 257.73 | |||||
| 9 | 61004743 | Grommet (3) |
|
$ 5.51 | |||||
| 10 | W10162932 | Heater, Defrost |
|
- | |||||
| 11 | 67005491 | Block, Condenser |
|
- | |||||
| 12 | WPW10197428 | Start Device (Replaces: W10128791) |
|
Immediately | $ 89.21 | ||||
| 14 | WP67006387 | Thermostat, Defrost (Replaces: 67006387) |
|
Immediately | $ 123.56 | ||||
| 15 | 67005680 | Grommet (2) |
|
$ 22.10 | |||||
| 16 | 12820504 | Pad, Acoustic |
|
$ 54.68 | |||||
| 17 | 2255199 | Clip, Capacitor |
|
- | |||||
| 18 | WP67006131 | Condenser (Replaces: 67006131) |
|
$ 385.08 | |||||
| 19 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 20 | W11547653 | Tray, Drip (Replaces: 67002490) |
|
$ 57.02 | |||||
| 21 | WPW10169124 | Grommet (4) (Replaces: W10169124) |
|
Immediately | $ 7.55 | ||||
| 22 | 12002730 | Evaporator (Replaces: W10162998) |
|
$ 363.64 | |||||
| 23 | 12963102SP | Dam (right Side) |
|
- | |||||
| 23 | 12963002SP | Dam (left Side) |
|
- | |||||
| 24 | W11613295 | Motor, Fan (Replaces: 67004432) |
|
Immediately | $ 143.68 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 26 | 13060202 | Harness, Unit With Power Cord |
|
$ 96.21 | |||||
| 27 | WPW10143759 | Drier (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| 28 | W10160407 | Compressor (includes Items 12, 17, 21, 27, & 35) (Replaces: W10134623) |
|
$ 629.92 | |||||
| 29 | W10134293 | Tube, Discharge |
|
$ 55.52 | |||||
| 30 | 12992101 | Screw (Replaces: 67006573) |
|
- | |||||
| 31 | 12575309SP | Shroud |
|
- | |||||
| 32 | WP67004953 | Bracket, Fan Motor (Replaces: 67004953) |
|
$ 72.27 | |||||
| 33 | 12846902 | Screw (3) (Replaces: 67006432) |
|
$ 13.64 | |||||
| 34 | 10547003 | Clip, Drier |
|
- | |||||
| 35 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 36 | WPW10137529 | Grommet, Cond. (4) (Replaces: W10137529) |
|
$ 8.76 | |||||
| 37 | WP67005149 | Roller (2) (Replaces: 67005149) |
|
Immediately | $ 23.12 | ||||
| 38 | 67006434 | Axle (2) |
|
Immediately | $ 7.90 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | |||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978030 | Valve, Access (3/4``) |
|
$ 137.25 | ||||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | |||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 94.14 | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 350930 | Enamel, White (13 Oz. Spray Can) |
|
Immediately | $ 40.12 | |||||
| 4392901 | Enamel, Bisque (12 Oz. Spray Can) (Replaces: 22002901) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| 4392899 | Enamel, Bisque (.6 Oz. Bottle) (Replaces: 22002900) |
|
Immediately | $ 27.77 | |||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 799344 | Enamel, White (1 Qt. Uncut) |
|
$ 237.46 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 243.14 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 01300019EA | Cleaner, Stnls Steel Magic (Replaces: 20000008) |
|
Immediately | $ 23.63 | |||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | ||||||
| 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | ||||||
| 72032 | Brush Touch-up Kit (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Brush Touch-up Kit (white) |
|
Immediately | $ 12.30 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 |
