01 - Cooktop Parts

Diagram for 02 - Blower Unit Parts
02 - Blower Unit Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Manifold Parts
04 - Manifold Parts

Diagram for 05 - Chassis Parts
05 - Chassis Parts

Diagram for 06 - Door Parts
06 - Door Parts

Diagram for 07 - Drawer And Rack Parts
07 - Drawer And Rack Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3807F737-51 Support, Control Appelez-nous -
3 W10314421 Panel, Control (w/membrane Switch) Special Order $ 563.55

4 WP98008545 Screw   (Replaces: 7101P633-60) Special Order $ 18.60

5 W10255425 Knobs Special Order $ 62.67

7 WP8507P231-60 Control (gas)   (Replaces: 8507P231-60) In-Stock Immediately $ 411.11

8 3604F433-51 Shield, Sight Special Order $ 31.44

9 4005F810-51 Cover, Rear Wire Special Order $ 248.98

10 WP59002061 Screw   (Replaces: 7101P077-60) Special Order $ 8.18

12 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 7.30


    View Diagram in Separate Window     Print Icon   Print Part List

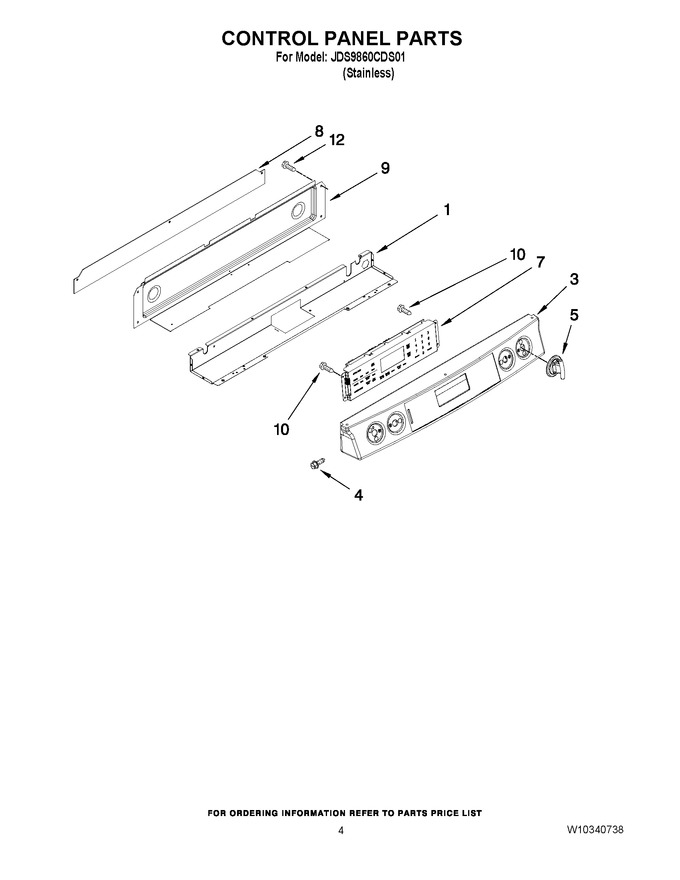

Diagram for JDS9860CDS01
