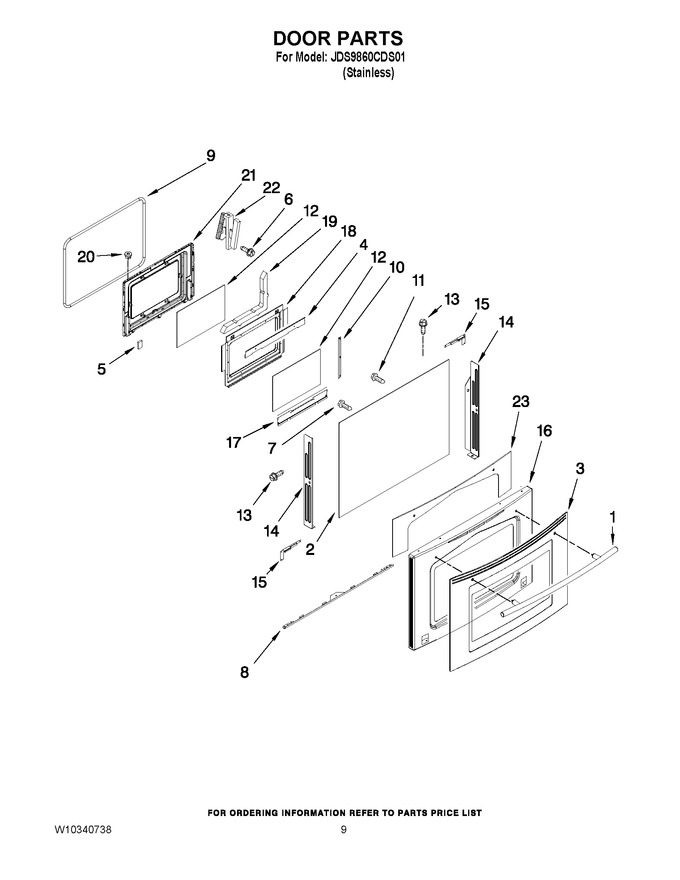

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10223152		Handle, Door				$ 141.55
2	7902P768-60		Glass, Coated		Appelez-nous	-
3	WPW10235390		Glass, Door   (Replaces: W10235390)				$ 414.72
4	3604F418-51		Shield				$ 77.46
5	7109P082-60		Spacer, Rubber		Appelez-nous	-
6	WP3400029		Screw   (Replaces: 7103P176-60)			Immediately	$ 7.76
7	WP90767		Screw, Handle   (Replaces: 7101P426-60)			Immediately	$ 7.82
8	8020P074-60		Support, Glass		Appelez-nous	-
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 86.23
10	3801F886-51		Bracket, Glass				$ 38.25
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 13.55
12	74003645		Glass, Inner (2)   (Replaces: 7902P436-60)			Immediately	$ 180.59
13	WP98008545		Screw   (Replaces: 7101P633-60)				$ 17.71
14	3804F317-80		Trim, Door				$ 65.61
15	3804F307-51		Retainer, Glass (right)				$ 109.75
15	3804F308-51		Retainer, Glass (left)		Appelez-nous	-
16	3603F075-70		Frame, Door				$ 187.06
17	3804F317-80		Retainer, Glass				$ 65.61
18	3601F373-51		Baffle, Door				$ 271.36
19	7002P246-60		Insulation, Door				$ 58.49
20	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 11.01
21	2402W312-19		Lining, Door				$ 144.50
22	74011475		Hinge, Door (2)   (Replaces: 7106P143-60)			Immediately	$ 130.52
23	7002P465-60		Insulation, Foil		Appelez-nous	-
