SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)

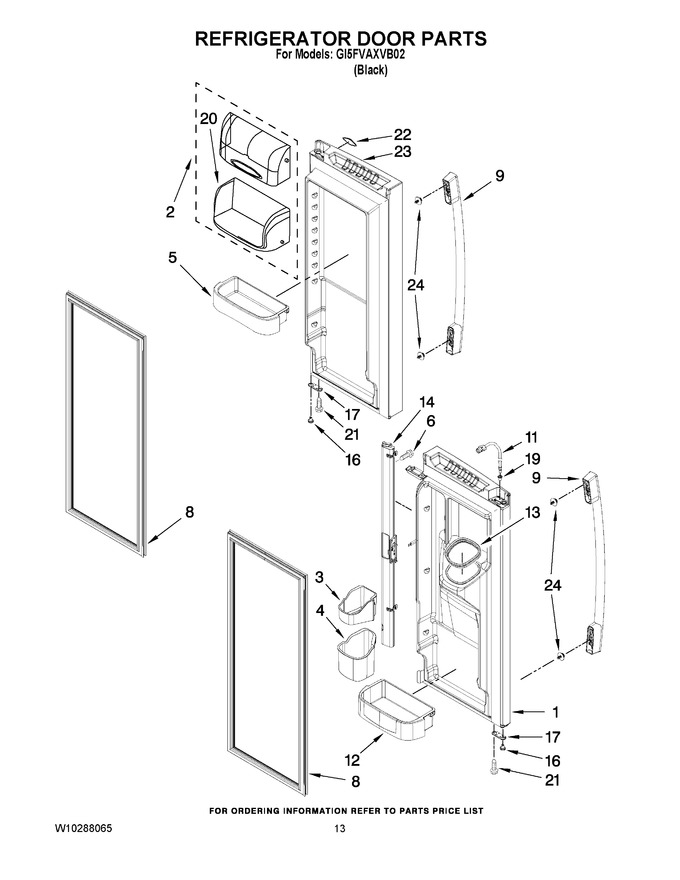

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12978069BQ		Door, Left (black)		Appelez-nous	-
2	WP12744905		Door, Compartment   (Replaces: 12744905)				$ 108.56
3	W10187453		Bucket, Upper   (Replaces: 12977401)				$ 69.60
4	12977501		Bucket, Lower		Appelez-nous	-
5	WPW10371194		Bucket, Medium   (Replaces: 12849124)			Immediately	$ 73.55
6	W11311945		Screw   (Replaces: 12990204)				$ 14.02
8	W11378944		Gasket, Door (black)   (Replaces: W10163898)			Immediately	$ 187.59
9	W11351146		Handle, Door (black)   (Replaces: W10222985)				$ 180.08
11	12962106		Waterline, Door				$ 126.75
12	WPW10289489		Bucket, Gallon   (Replaces: 12918402)			Immediately	$ 84.37
13	WPW10287601		Seal, Ice Chute   (Replaces: 12999902)			Immediately	$ 31.20
14	WPW10151713		Mullion, Door (black)   (Replaces: 12722813B)				$ 325.79
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
17	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 14.05
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
20	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
21	WP98165		Screw   (Replaces: 12990521)				$ 8.00
22	2220214		Nameplate				$ 32.43
23	12978071BQ		Door, Right (black)		Appelez-nous	-
24	WP12992902		Screw, Handle (shoulder)   (Replaces: 12992902)				$ 11.07

    View Diagram in Separate Window       Print Part List
