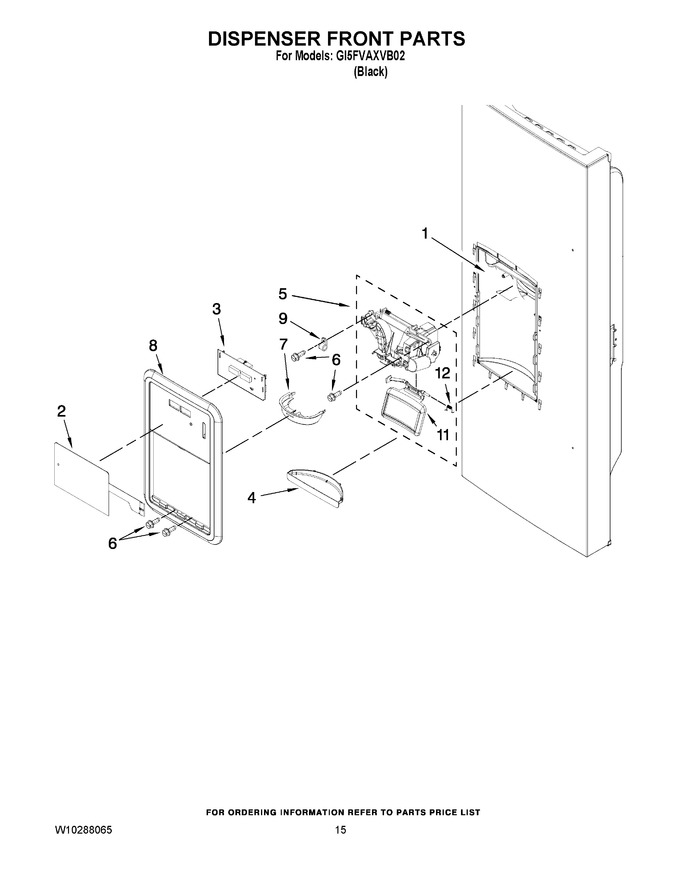

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10860143		Dispenser Keyboard (black)   (Replaces: W10164139)		Appelez-nous	-
3	W10162500		Board, L.v.				$ 194.39
4	W10168726		Sump, Dispenser (black)				$ 37.28
5	WP13005704B		Chute, Ext/yoke (includes Switch) (black)   (Replaces: 13005704B)				$ 313.64
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
7	67006295		Ring, Target   (Replaces: 12958301)				$ 52.92
8	W10163996		Facade, Dispenser (black)		Appelez-nous	-
9	M0108106		Clamp, Tube				$ 66.62
11	WPW10168729		Yoke/pad Assembly (black)   (Replaces: W10168729)				$ 14.70
12	WP12565502		Spring   (Replaces: 12565502)				$ 7.81

    View Diagram in Separate Window       Print Part List
