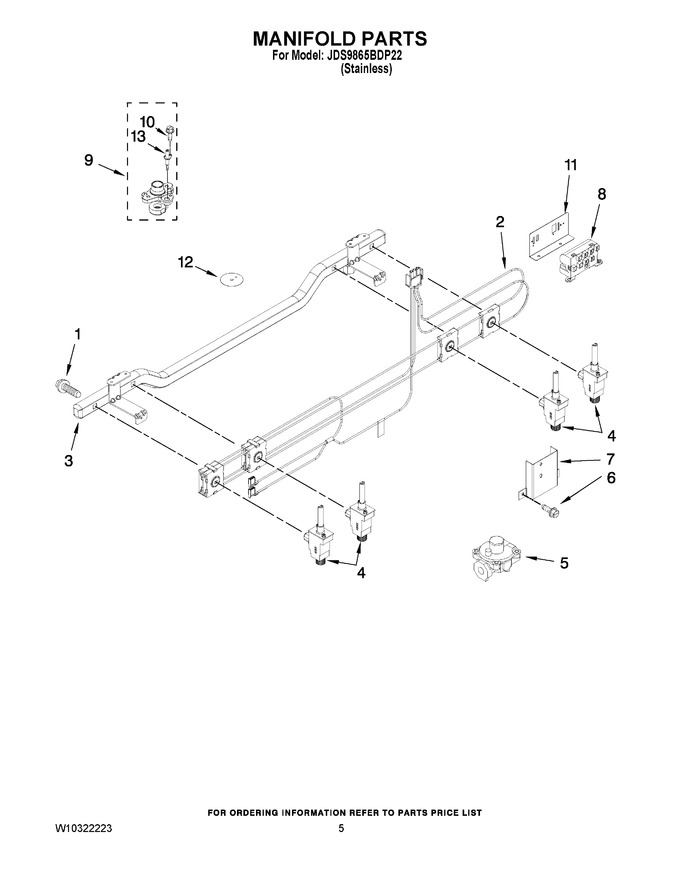

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P639-60 | Screw, Valve (4) |
|
$ 5.53 | |||||
| 2 | W10183582 | Harness, Igniter (with Switches) |
|
$ 243.47 | |||||
| 3 | W10165142 | Pipe, Manifold |
|
$ 114.40 | |||||
| 4 | 7502P564-60 | Valve (right Front) |
|
$ 117.14 | |||||
| 4 | 7502P561-60 | Valve (right Rear) |
|
$ 177.73 | |||||
| 4 | W10185517 | Valve (left Front/rear) |
|
$ 166.89 | |||||
| 5 | 7510P077-60 | Regulator, Pressure |
|
- | |||||
| 6 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 7 | 3801F913-51 | Bracket, Regulator To Valve |
|
- | |||||
| 8 | WP7431P064-60 | Module, Spark (Replaces: 7431P064-60) |
|
$ 324.44 | |||||
| 9 | WPW10407678 | Holder, Orifice (right Front) (Replaces: 7527P081-60) |
|
$ 126.04 | |||||
| 9 | WPW10407680 | Holder, Orifice (right Rear) (Replaces: 7527P084-60) |
|
$ 115.09 | |||||
| 10 | WP90767 | Screw, Ignitor (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 11 | 3807F752-45 | Support, Spark Module |
|
$ 27.55 | |||||
| 12 | WP74008212 | Cover, Valve (Replaces: 7724P194-60) |
|
$ 8.02 | |||||
| 13 | WP8523793 | Ignitor (rf, Rr) (Replaces: 7432M126-60) |
|
Immediately | $ 40.17 | ||||
| 13 | WP74006072 | Ignitor (grill Burner) (Replaces: 7432P112-60) |
|
Immediately | $ 112.83 | ||||
| NI | W10224724 | Tubing, Supply |
|
$ 116.73 | |||||
| NI | 7506P471-60 | Tubing, Lf |
|
$ 51.82 | |||||
| NI | 7506P472-60 | Tubing, Lr |
|
- | |||||
| NI | 7506P473-60 | Tubing, Rf |
|
- | |||||
| NI | 7506P474-60 | Tubing, Rr |
|
- |
