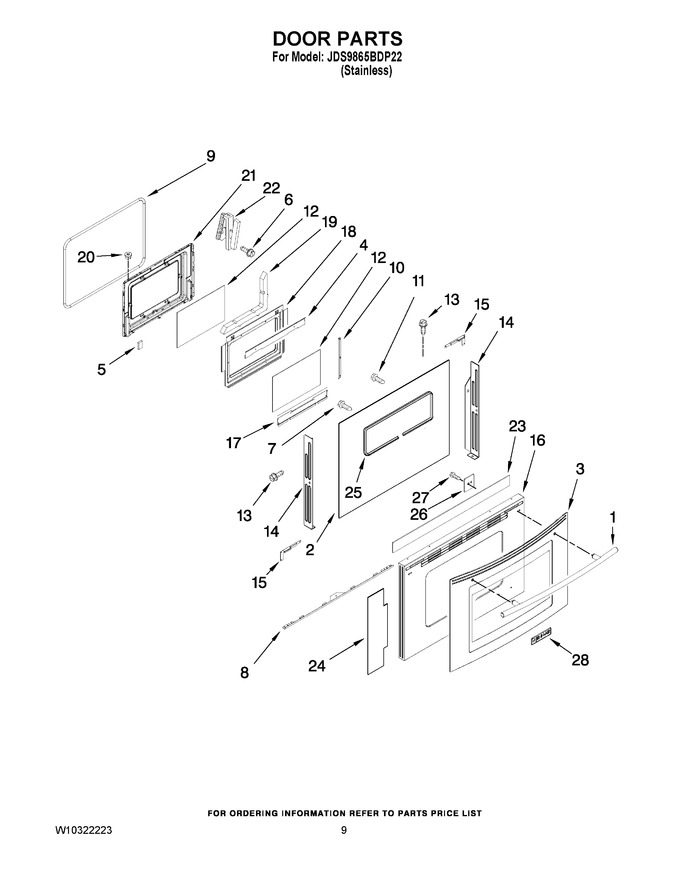

06 - Door Parts


07 - Drawer And Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7701P475-60		Handle, Door   (Replaces: 7701P475-60)				$ 293.93
2	7902P768-60		Glass, Coated		Appelez-nous	-
3	7902P468-60		Glass, Door		Appelez-nous	-
4	3604F418-51		Shield				$ 77.46
5	7112P034-60		Clip, Glass		Appelez-nous	-
6	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
7	WP90767		Screw, Handle   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	3804F265-45		Support, Glass				$ 9.40
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 86.23
10	3801F886-51		Bracket, Glass				$ 38.25
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 14.23
12	74003645		Glass, Inner (2)   (Replaces: 7902P436-60)			Immediately	$ 180.59
13	W11233072		Screw   (Replaces: 7101P634-60)			Immediately	$ 14.72
14	3804F317-80		Trim, Door				$ 65.61
15	3804F308-51		Retainer, Glass (left)		Appelez-nous	-
15	3804F307-51		Retainer, Glass (right)				$ 109.75
16	7760P158-60		Frame, Door				$ 171.57
17	3804F317-80		Retainer, Glass				$ 65.61
18	3601F373-51		Baffle, Door				$ 284.93
19	7002P246-60		Insulation, Door				$ 58.49
20	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 11.74
21	2402W312-19		Lining, Door				$ 144.50
22	74011475		Hinge, Door (2)   (Replaces: 7106P143-60)			Immediately	$ 130.52
23	WP74010043		Insulation   (Replaces: 7002P427-60)				$ 78.37
24	74011048		Insulation, Foil (2)   (Replaces: 7002P463-60)				$ 83.69
25	WP74009029		Gasket, Door   (Replaces: 7201P141-60)			Immediately	$ 169.43
26	W10167659		Plate, Handle				$ 24.52
27	7101P668-60		Screw (2)		Appelez-nous	-
28	7719P087-60		Nameplate		Appelez-nous	-
