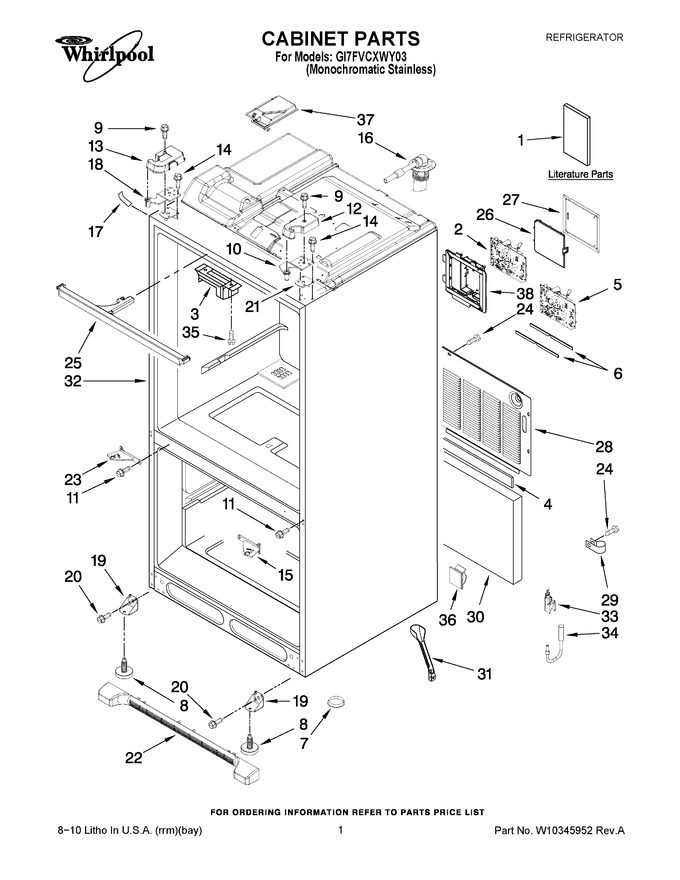

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Motor And Ice Container Parts


08 - Icemaker Parts


09 - Dispenser Front Parts


10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10310695		Tech Sheet		Appelez-nous	-
1	W10276054		Tag, Energy		Appelez-nous	-
1	W10226405		Owners Manual		Appelez-nous	-
2	WPW10226427		Supply, Power   (Replaces: W10226427)			Immediately	$ 335.17
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket				$ 12.41
5	WPW10267646		Board, Control (hv, Gemini)   (Replaces: W10267646)				$ 356.02
6	12957801K		Gasket, Hv Box		Appelez-nous	-
7	A3076901		Plug, Button				$ 5.70
8	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 7.85
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	W11592374		Hinge, Top Right   (Replaces: 12963205ED)			Immediately	$ 29.02
11	W11573362		Screw (6)   (Replaces: 12992201)				$ 14.02
12	W10272998		Cover, Right Hinge (apollo Grey)		Appelez-nous	-
13	W10272481		Cover, Left Hinge (apollo Grey)		Appelez-nous	-
14	WP489349		Screw (6)   (Replaces: 12992403)			Immediately	$ 7.88
15	W10917988		Hinge, Center (rt) (apollo Grey)   (Replaces: 13000002AP)			Immediately	$ 91.08
16	W10213219		Fill Tube, Icemaker				$ 59.52
17	WP12587703AP		Cover, Corner (2) (apollo Grey)   (Replaces: 12587703AP)				$ 7.69
18	W10319345		Hinge, Top Left		Appelez-nous	-
19	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 35.57
19	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 35.57
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 7.69
21	12999502		Shim, Hinge (right)				$ 95.81
21	12999501		Shim, Hinge (left)				$ 94.79
22	WPW10534155		Grille, Toe (apollo Grey)   (Replaces: W10244558)			Immediately	$ 119.56
23	W10917988		Hinge, Center (lt) (apollo Grey)   (Replaces: 13000001AP)			Immediately	$ 91.08
24	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
25	W10253811		Cover, Water Line (apollo Grey)		Appelez-nous	-
26	W11226688		Lid, Hv Box   (Replaces: 12957702K)				$ 81.10
27	12961602		Cover, Control Box				$ 110.66
28	WPW10270394		Cover, Unit   (Replaces: W10270394)				$ 198.79
29	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 21.33
30	12820505		Insulation, Sound				$ 71.70
31	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
32	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
33	W10236761		Cover, Water Valve				$ 16.11
34	W10223786		Waterline, Household		Appelez-nous	-
35	W10854958		Screw (2)   (Replaces: 12990302)				$ 7.43
36	WPM0104106		Clip, Cord   (Replaces: M0104106)				$ 7.78
37	W10237969		Sump, Cab Top		Appelez-nous	-
38	W10159461		Box, Hv Control		Appelez-nous	-
