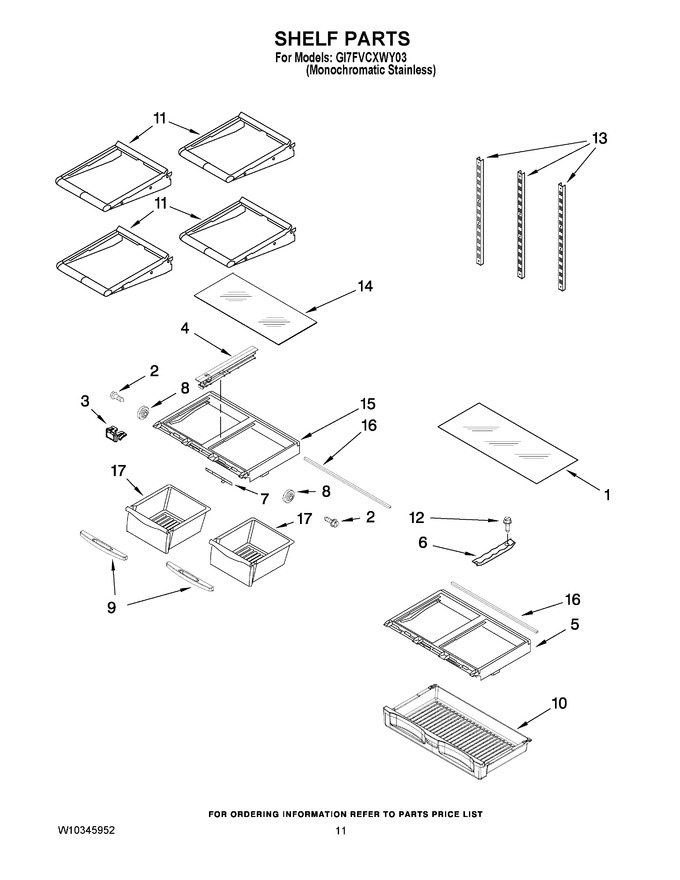

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12204826		Glass, Pantry   (Replaces: 12204826)				$ 241.98
2	67006692		Screw   (Replaces: 12991401)				$ 10.28
3	2223309		Knob, Humidity				$ 34.60
4	W10209721		Frame, Crisper Center		Appelez-nous	-
5	W10331182		Frame, Pantry		Appelez-nous	-
6	WP67001719		Track, Pantry   (Replaces: 12531901)			Immediately	$ 8.56
7	W10141530		Slide, Humidity		Appelez-nous	-
8	12756701		Roller, Crisper Frame		Appelez-nous	-
9	WPW10297814		Handle, Crisper   (Replaces: W10141531)				$ 156.85
10	W10328333		Drawer, Pantry		Appelez-nous	-
11	12883509		Shelf, Glide (4)		Appelez-nous	-
12	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
13	W10268264		Ladder (3)				$ 31.95
14	WP12204826		Glass, Crisper   (Replaces: 12204826)				$ 241.98
15	W10303540		Frame, Crisper		Appelez-nous	-
16	W10490807		Brace, Crisper   (Replaces: W10119258)				$ 96.59
17	WPW10297814		Pan, Crisper (2)   (Replaces: W10297807)				$ 156.85
