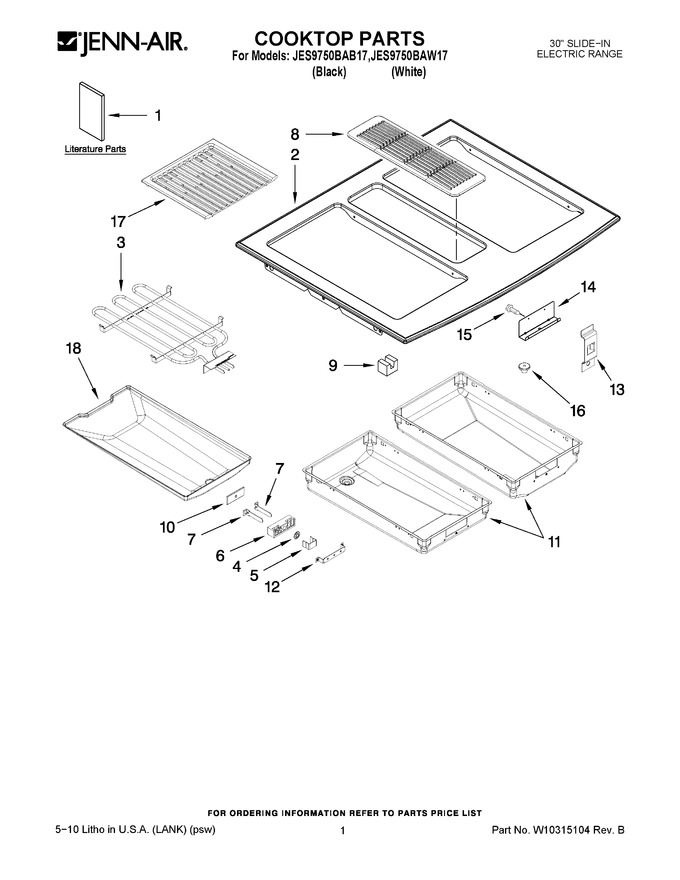

01 - Cooktop Parts


02 - Control Panel Parts


03 - Blower Assembly Parts


04 - Chassis Parts


05 - Internal Oven Parts


06 - Drawer Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P185-60		Instructions, Ducting		Appelez-nous	-
1	8113P755-60		Use & Care Guide		Appelez-nous	-
1	8119P355-60		Diagram, Wiring		Appelez-nous	-
1	9762761		Brochure, Tips Safe Cooking		Appelez-nous	-
1	8101P700-60		Instructions, Installation		Appelez-nous	-
2	W10202594		Cooktop (black)		Appelez-nous	-
2	W10204446		Cooktop (white)		Appelez-nous	-
3	WPW10310263		Element, Grill   (Replaces: W10310263)				$ 342.63
4	Y708862		Nut   (Replaces: 7103P148-60)				$ 15.25
5	7422P002-60		Clip, Shunt		Appelez-nous	-
6	WPY708730		Block, Element Terminal   (Replaces: 7401P061-60)				$ 102.01
7	Y708572		Contact, Spade   (Replaces: 7405P131-60)			Immediately	$ 13.23
8	7772P050-60		Grill, Air		Appelez-nous	-
9	8255P412-60		Block, Element Support				$ 31.52
10	7003P082-60		Insulator		Appelez-nous	-
11	3401F050-19		Pan, Grill (left)				$ 107.69
11	3401F051-19		Pan, Grill (right)				$ 107.53
12	3801F621-51		Brkt, Grill Pan				$ 5.51
13	7112P147-60		Clip, Ground		Appelez-nous	-
14	3807F743-51		Support, Cartridge Pan		Appelez-nous	-
15	W10828565		Screw   (Replaces: 7101P635-60)				$ 7.85
16	7718P024-60		Plug, Rubber				$ 13.81
17	7518P118-60		Grate, Grill				$ 129.60
18	4009F087-19		Liner, Pan				$ 105.43
