Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP22001948 Lens   (Replaces: 7730P031-60) Special Order $ 12.69

2 W10206088 Panel, Control (white) Special Order $ 281.16

2 WPW10206078 Panel, Control (black)   (Replaces: W10206078) Special Order $ 533.62

3 W11846982 Screw, Switch   (Replaces: 7101P676-60) Appelez-nous -
4 WP74011489 Switch, Infinite   (Replaces: 7450P056-60) In-Stock Immediately $ 118.54

5 WP8507P233-60 Control   (Replaces: 8507P233-60) Special Order $ 369.57

6 WP74011493 Knob, (4)   (Replaces: 7737P395-60) In-Stock Immediately $ 44.04

7 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.82

8 WP74004153 Light, Indicator   (Replaces: 7407P136-60) In-Stock Immediately $ 8.91

9 WP59002061 Screw, Control   (Replaces: 7101P077-60) Special Order $ 7.75

10 3807F741-80 Support, Control Panel Appelez-nous -
11 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.82

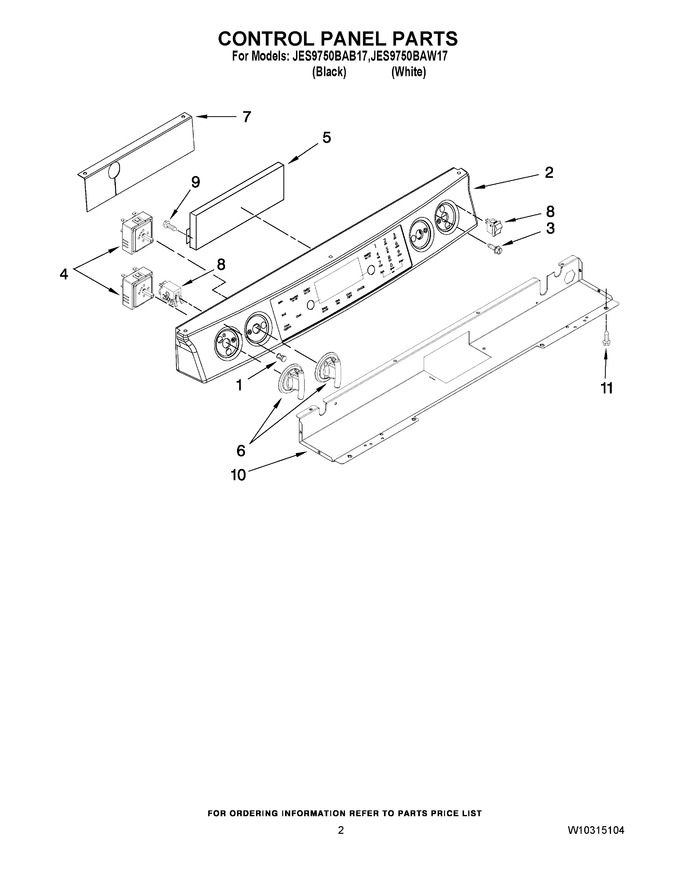

    View Diagram in Separate Window     Print Icon   Print Part List
